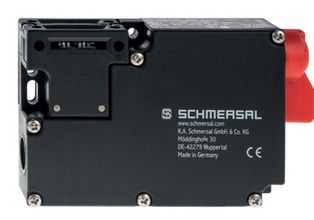

Schmersal 101181209 AZM 161CC-12 / 12rkt-024 Security, AZM 161CC-12/024-12rkt
|
289,97 EUR |
|||||||||||
|
( 345,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 521961 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101181209 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101181209:
Its robust design with a holding force of up to 2,600 N makes it ideal for demanding environments. An integrated escape release allows manual unlocking from within the hazardous area during emergencies. Compact construction and the use of spring clamp terminals simplify installation and enhance flexibility.
Technical Data:
Ordering Details:
- Product Type: AZM 161CC-12/12RKT-024
- Part Number: 101181209
- EAN: 4030661315607
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
Approvals:
- Certifications: IFA, cULus, CCC
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber reinforced thermoplastic, self-extinguishing
- Gross Weight: 420 g
Mechanical Properties:
- Mechanical Lifespan: ≥ 1,000,000 operations
- Holding Force: 2,000 N (FZh per EN ISO 14119), max. 2,600 N
- Latching Force: 30 N
- Forced Opening Distance: 10 mm
- Dimensions: 130 x 90 x 30 mm
Electrical Properties:
- Operating Voltage: 24 VAC/DC
- Safety Contacts: 4 (slow action, forced opening)
- Auxiliary Contacts: 2
- Thermal Continuous Current: 6 A
- Power Consumption: Max. 10 W
- Maximum Switching Frequency: 1,000 /h
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -30 °C to +60 °C
- Storage and Transport Temperature: -30 °C to +85 °C
Accessories:
- Recommended Applications: Sliding, removable, or rotating safety devices
Scope of Delivery:
- Actuator is not included.
Notes:
- Integrated escape release for manual operation in emergencies.
- Pay attention to the tightening sequence of the housing screws.
Type: AZM 161CC-12/12rkt-0
Questions & answers
What is the delivery time of Schmersal 101181209 AZM 161CC-12 / 12rkt-024 Security, AZM 161CC-12/024-12rkt?
The article Schmersal 101181209 AZM 161CC-12 / 12rkt-024 Security, AZM 161CC-12/024-12rkt is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101181209 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal 101181209 AZM 161CC-12 / 12rkt-024 Security, AZM 161CC-12/024-12rkt always at the best possible price. We can give you a discount of 2% on Schmersal 101181209 AZM 161CC-12 / 12rkt-024 Security, AZM 161CC-12/024-12rkt if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal 101181209 AZM 161CC-12 / 12rkt-024 Security, AZM 161CC-12/024-12rkt we can offer you a price of 281,27 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
