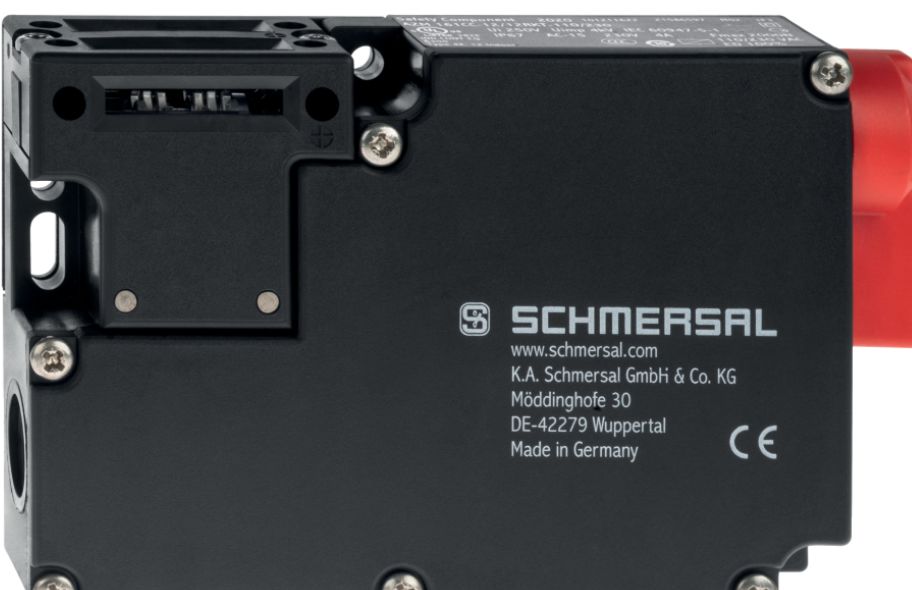

Schmersal AZM 161SK-12/12RKT-024 safety locking device 101177876
|
289,97 EUR |
|||||||||||
|
( 345,06 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1237232 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101177876 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101177876:
Product Description in English:
The AZM 161SK-12/12RKT-024 is an electromechanical safety switch designed for industrial applications requiring the highest safety standards. With a fiberglass-reinforced, self-extinguishing plastic housing and an IP67 protection rating, this switch is robust and reliable, even in demanding environments.
The switch operates on the closed-circuit principle and features four safety contacts and two auxiliary contacts. An integrated escape release allows operation from within the hazardous area in emergencies, providing additional safety. With a maximum retention force of 2,600 N and a mechanical lifespan of at least 1,000,000 switching cycles, the switch is highly durable.
The AZM 161SK-12/12RKT-024 supports three approach directions and flexible installation via screw terminals and four cable entries (M16 x 1.5). It is suitable for sliding, removable, and rotating protective devices and complies with EN ISO 13849-1 and EN IEC 60947-5-1 standards.
Technical Data:
Product Type Designation:
- AZM 161SK-12/12RKT-024
Order Number:
- 101177876
EAN:
- 4030661309491
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals:
- IFA
- cULus
- CCC
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Fiberglass-reinforced thermoplastic
- Gross Weight: 420 g
Mechanical Data:
- Lifespan: At least 1,000,000 switching cycles
- Retention Force: Up to 2,600 N
- Dimensions: Length: 30 mm, Width: 130 mm, Height: 90 mm
Electrical Data:
- Thermal Continuous Current: 6 A
- Operating Voltage: 24 VAC/DC
- Contact Elements: Normally Open (NO), Normally Closed (NC)
- Power Consumption: Maximum 10 W
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -30 ... +60 °C
Scope of Delivery:
- Actuator not included.
Note:
- Integrated escape release for emergencies.
- Suitable for sliding, removable, and rotating protective devices.
Type: AZM 161SK-12/12RKT-024
Questions & answers
What is the delivery time of Schmersal AZM 161SK-12/12RKT-024 safety locking device 101177876?
The article Schmersal AZM 161SK-12/12RKT-024 safety locking device 101177876 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101177876 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 161SK-12/12RKT-024 safety locking device 101177876 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 161SK-12/12RKT-024 safety locking device 101177876 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 161SK-12/12RKT-024 safety locking device 101177876 we can offer you a price of 281,27 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
