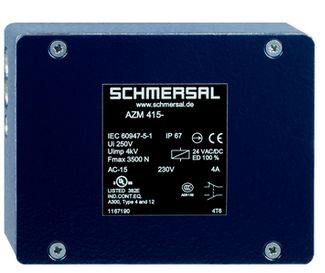

Schmersal AZM 415-02/11ZPK 24VAC/DC safety locking device 101174507
|
448,87 EUR |
|||||||||||
|
( 534,16 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1240803 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101174507 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101174507:
This switch operates on the closed-circuit principle and includes three safety contacts and one auxiliary contact. Its IP67 protection rating ensures reliable operation in dusty or humid environments.
Technical Data:
Ordering Details:
- Product Type: AZM 415-02/11ZPK 24VAC/DC
- Part Number: 101174507
- EAN: 4030661331928
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: BG-GS-ET-19, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Aluminum, painted
- Gross Weight: 902 g
Mechanical Data:
- Lifespan: Minimum 1,000,000 switching cycles
- Locking Force: 3,500 N
- Latching Force: 150 - 400 N
- Forced Opening Travel: 5 mm
- Max. Actuation Speed: 0.2 m/s
- Connection Type: Screw Connection M20 x 1.5
- Conductor Cross-Section: 2 x 0.75 mm² to 2 x 2.5 mm²
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Max. Switching Power: 10 W
- Voltage (AC-15): 230 VAC / 4 A
- Voltage (DC-13): 24 VDC / 1 A
- Switching Elements: 3 Safety Contacts (NC), 1 Auxiliary Contact (NO)
- Switching Principle: Slow Action
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 to +50 °C
- Relative Humidity: Non-condensing, non-freezing
Other Information:
- Applications: Sliding and rotating protective devices
Type: AZM 415-02/11ZPK 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 415-02/11ZPK 24VAC/DC safety locking device 101174507?
The article Schmersal AZM 415-02/11ZPK 24VAC/DC safety locking device 101174507 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101174507 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 415-02/11ZPK 24VAC/DC safety locking device 101174507 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 415-02/11ZPK 24VAC/DC safety locking device 101174507 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 415-02/11ZPK 24VAC/DC safety locking device 101174507 we can offer you a price of 442,14 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
