Schmersal IFL 50-385-11ZPG Indian proximity switch 4L DC cuboid 101174071
|
206,02 EUR |
|||||||||||
|
( 245,16 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312503 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101174071 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101174071:
Product Description in English:

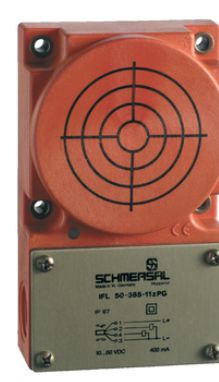

The IFL 50-385-11P-M20 is an inductive proximity sensor with a square housing design, specifically optimized for non-flush mounting conditions. It provides reliable detection with a nominal sensing distance of 50 mm and features a robust plastic construction. With IP67 protection, it is suitable for demanding environments, while the integrated status indicator via yellow LED ensures easy state monitoring.
Technical Data:
Product Type Designation:
- IFL 50-385-11P-M20
Order Number:
- 101174071
EAN:
- 4030661303239
eCl@ss Numbers:
- Version 12.0: 27-27-40-01
- Version 11.0: 27-27-01-01
- Version 9.0: 27-27-01-01
ETIM Numbers:
- Version 7.0: EC002714
- Version 6.0: EC002714
Approvals and Standards:
- DIN VDE 0660-208
- EN IEC 60947-5-2
- CCC
General Properties:
- Housing Design: Square
- Housing Material: Plastic
- Integrated Status Display: Yellow LED
- Number of Wires: 4
Mechanical Data:
- Nominal Sensing Distance Sn: 50 mm
- Sensing Distance on Request: 70 mm
- Connection Type: Screw Terminal M20 x 1.5
- Maximum Wire Cross-Section: 2 x 1.5 mm²
- Dimensions: - Length: 40 mm
- Protection Class: IP67
- Ambient Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Protection Class: II
- Width: 80 mm
- Height: 135 mm
Environmental Conditions:
Electrical Data:
- Voltage Type: DC
- Operating Voltage: 10 ... 60 VDC
- Operating Current: 400 mA
- Switching Element: Normally Open (NO) and Normally Closed (NC) (antivalent)
- Integrated Protection: Inductive Protection, Reverse Polarity Protection
- Switching Frequency: Approximately 25 Hz
Digital Outputs:
- Voltage Drop Ud, Maximum: 1.5 V
- Current at Voltage Drop Ud: 0.2 A
- Switching Elements: P-switching
Accessories:
- Mounting Bracket HW 385-1 available for easy installation
Note:
- Technical changes and variations reserved. Images may differ from the actual product.
Type: IFL 50-385-11ZPG
