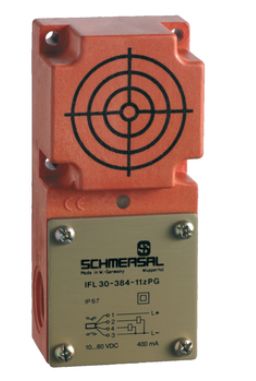

Schmersal IFL 30-384-11P Indian proximity switch 4L DC cuboid 101173958
|
137,38 EUR |
|||||||||||
|
( 163,48 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312504 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101173958 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101173958:
The inductive proximity switch IFL 30-384-11P-M20 by Schmersal is a reliable sensor designed for contactless detection of metallic objects. With a nominal sensing distance of 30 mm, it is ideally suited for industrial applications requiring precise switching even in harsh environments. The housing is made of high-quality plastic in a cuboid shape, ensuring durability and high resistance to mechanical stress.
With an IP67 protection rating, the sensor is fully protected against dust and water, making it ideal for demanding locations. The proximity switch features a p-switching contact element with both normally open (NO) and normally closed (NC) functions. A built-in yellow LED indicates the current switching status. The electrical connection is made via a robust M20 x 1.5 screw terminal, allowing for easy installation.
Operating with a voltage range of 10 to 60 VDC and a switching frequency of up to 25 Hz, the sensor is highly versatile. The proximity switch complies with the DIN VDE 0660-208 and EN IEC 60947-5-2 standards and is CCC-certified. Integrated protection circuits against reverse polarity and inductive voltage spikes ensure safe operation.
### Technical Data:
Product type designation:
- IFL 30-384-11P-M20
Article number:
- 101173958
EAN:
- 4030661303109
Approvals:
- CCC
Standards:
- DIN VDE 0660-208
- EN IEC 60947-5-2
Housing:
- Shape: Cuboid
- Material: Plastic
- Installation: Non-flush
- Protection rating: IP67
Mechanical Data:
- Length: 40 mm
- Width: 55 mm
- Height: 120 mm
- Nominal sensing distance Sn: 30 mm
- Connection type: Screw terminal M20 x 1.5
- Max. wire cross-section: 2 x 1.5 mm²
Electrical Data:
- Operating voltage: 10 ... 60 VDC
- Operating current: 400 mA
- No-load current I0: 5.5 mA
- Contact element: Normally open (NO) and normally closed (NC) (antivalent)
- Switching frequency: 25 Hz
- Voltage drop Ud max.: 1.5 V
- Current at Ud: 0.4 A
- Protective circuits: Induction protection, reverse polarity protection
Environmental Conditions:
- Operating temperature: -25 ... +70 °C
- Vibration resistance: 10 … 55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Status Indicator:
- Integrated LED: Yellow
### Scope of Delivery:
- 1x Inductive Proximity Switch IFL 30-384-11P-M20
- User manual
Type: IFL 30-384-11P
