Schmersal BN 20-10Z magnetic switch 101172882

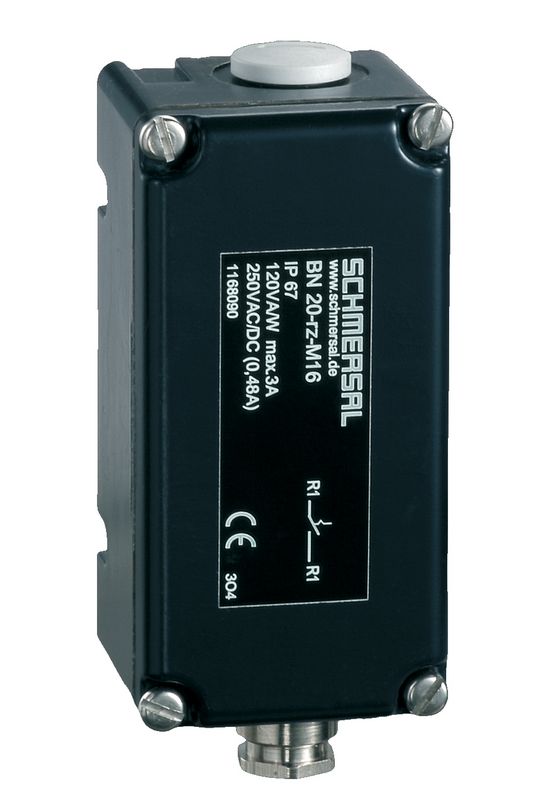

The BN 20-10Z-M16 from Schmersal is a rectangular magnetic sensor with a durable aluminum housing, designed for use in safety-critical industrial applications. The sensor operates based on a magnetic principle and features a side actuation plane and active area.

With an integrated preload magnet, the BN 20-10Z-M16 offers a high repeat accuracy of 0.3 mm and a switching distance of up to 45 mm, depending on the actuator magnet used. The sensor can achieve a maximum actuation speed of 18 m/s and has a minimum mechanical lifespan of 1 billion switching cycles.

The BN 20-10Z-M16 includes a normally open (NO) switching contact. The maximum switching voltage is 250 VAC, with a maximum switching current of 3 A. The sensor is suitable for harsh environments, with an IP67 protection rating and an operating temperature range of -25 °C to +90 °C.

Important Note: The actuator is not included in the delivery. Recommended actuators are BP 10, BP 20, BP 31, and more.
Technical Data:

Product Type Designation:

BN 20-10Z-M16

Article Number (Order Number):

101172882

EAN (European Article Number):

4030661301761

eCl@ss Numbers:

Version 12.0: 27-27-43-02
Version 11.0: 27-27-01-05
Version 9.0: 27-27-01-05

ETIM Numbers:

Version 7.0: EC002544
Version 6.0: EC002544

Approvals - Regulations:

Certificates:

cULus

Standards:

EN IEC 60947-5-1

General Data:

Operating Principle:

Magnetic

Housing Design:

Rectangular

Housing Material:

Aluminum

Active Surface Material:

Metal

Gross Weight:

285 g

Preload Magnet:

Yes

Number of NO Contacts:

1

Mechanical Data:

Actuation Plane:

Side

Active Surface:

Side

Actuation Element:

Magnet

Mechanical Lifespan, Minimum:

1,000,000,000 switching cycles

Maximum Actuation Speed:

18 m/s

Switching Distance According to EN IEC 60947-5-3:

Switching Distance Sn:

BP 11 = 15 mm
12 mm to 45 mm
2x BP 10 = 12 mm
2x BP 15/2 = 12 mm
BP 20 = 15 mm
BP 31 = 15 mm
BP 12 = 25 mm
BP 21N = 20 ... 45 mm
BE 20 = 15 mm

Switching Distance Note:

Up to 45 mm, depending on the actuator magnet and configuration

Repeat Accuracy R:

0.3 mm

Connectivity:

Connection Type:

Screw Connection M20 x 1.5

Dimensions:

Sensor Length:

47 mm

Sensor Width:

104 mm

Sensor Height:

52 mm

Environmental Conditions:

Degree of Protection:

IP67

Ambient Temperature:

-25 ... +90 °C

Vibration Resistance:

50 g, sinusoidal oscillation

Electrical Data:

Maximum Switching Voltage:

250 VAC

Maximum Switching Current:

3 A

Maximum Switching Power:

120 W / 120 VA

Switching Element:

Normally Open (NO)

Bounce Time, Minimum:

0.3 ms

Bounce Time, Maximum:

0.6 ms

Maximum Switching Frequency:

1,080,000 /h

Digital Outputs:

Switching Element Type:

Reed Contact

Included Items:

The actuator is not included in the delivery.

Accessories:

Recommended Actuators:

2x BP 10
2x BP 15/2
BP 20
BP 31
BP 11
BP 12
BP 21 N
BE 20

Note (General):

The NO or NC function depends on the actuation direction, the actuator magnet, and the magnet's polarity.
When aligning the switch and actuator, color matching is required: red (S) to red (S) and green (N) to green (N).
Type: BN 20-10Z
