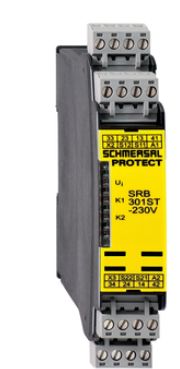

Schmersal SRB 301ST 230V protective door monitor 101170099
|
389,88 EUR |
|||||||||||
|
( 463,96 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331134 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101170099 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101170099:
Product Description in English:
The SRB301ST 230V safety relay is a reliable solution for monitoring and controlling machinery safely. It is ideally suited for applications such as protective devices, emergency stop buttons, and cable-operated emergency switches. With three safety contacts and one auxiliary contact, the device meets the highest safety standards, including PL e (EN ISO 13849-1) and SIL 3 (EN IEC 61508).
Technical Data:
Replaces Article Number:
- 101177167
Product Type Designation:
- SRB301ST 230V
Article Number:
- 101170099
EAN:
- 4250116201822
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-18-19
- ETIM Version 7.0: EC001449
Approvals and Standards:
- Certifications: TÜV, cULus, CCC
- Standards: EN ISO 13849-1, EN IEC 61508, EN IEC 60947-5-1
Material and Weight:
- Housing Material: Plastic, fiberglass-reinforced thermoplastic
- Gross Weight: 250 g
Mechanical Properties:
- Width: 22.5 mm
- Height: 100 mm
- Depth: 121 mm
- Mechanical Lifespan: Min. 10,000,000 switching cycles
Electrical Properties:
- Operating Voltage: 48 ... 240 VAC
- Power Consumption: 2.8 VA
- Safe Relay Outputs: 3 safety contacts (6 A, 230 VAC)
- Digital Outputs: 0.1 A (24 VDC, DC-12)
Functions:
- Wire break detection and feedback loop
- Automatic and manual reset
- Reset edge detection
Environmental Conditions:
- Protection Class: IP40 (housing), IP40 (terminals), IP40 (installation area)
- Ambient Temperature: -25 ... +45 °C
Safety Consideration:
- Performance Level: PL e
- Category: 4
- SIL: 3
Notes:
- Inductive loads must be protected with appropriate circuitry.
Type: SRB301ST 230V
Questions & answers
What is the delivery time of Schmersal SRB 301ST 230V protective door monitor 101170099?
The article Schmersal SRB 301ST 230V protective door monitor 101170099 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101170099 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal SRB 301ST 230V protective door monitor 101170099 always at the best possible price. We can give you a discount of 2% on Schmersal SRB 301ST 230V protective door monitor 101170099 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal SRB 301ST 230V protective door monitor 101170099 we can offer you a price of 384,03 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
