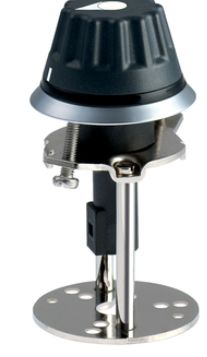

Schmersal NDAN6 rotary drive 63mm for potentiometer 101169823
|
78,55 EUR |
|||||||||||
|
( 93,47 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331391 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101169823 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101169823:
The NDAN6 rotary drive facilitates simple and precise control of potentiometers. With its robust construction and hygienic materials, it is ideal for various industrial applications, including demanding environments. Installation is flexible with multiple mounting options.
Technical Data:
Product Designation:
- NDAN6
Article Number:
- 101169823
EAN:
- 4250116200405
eCl@ss Numbers:
- Version 12.0: 27-37-12-13
- Version 11.0: 27-37-12-13
- Version 9.0: 27-37-12-13
ETIM Numbers:
- Version 7.0: EC000222
- Version 6.0: EC000222
Approvals - Regulations:
- Certificates: cULus, Hygiene Approved
- Regulations: EN IEC 60947-5-1, EN IEC 60947-1
General Data:
- Design: Rotary drive for potentiometers
- Form: Without stop
- Installation Conditions (Mechanical): Arbitrary
- Sealing Type: Membrane, Lip Seals
- Front Ring Material: ABS, chrome-plated
- Potentiometer Holder Material: Brass, nickel-plated / Stainless Steel
- Knob Material: ABS
- Control Unit Color: Black
- Front Ring Color: Silver
- Knob Color: Grey
- Gross Weight: 50 g
General Data - Features:
- Mounting Flange: Yes
- Full Insulation: Yes
Mechanical Data:
- Mounting: Mounting flange
- Screw Tightening Torque: 0.6 Nm
Mechanical Data - Dimensions:
- Height: 26 mm
- Installation Depth: 50 mm
- Knob Diameter: 26 mm
- Front Ring Diameter: 44.5 mm
- Installation Diameter: 22.3 mm
- Shaft Length: 30 … 40 mm
- Shaft Diameter, Max.: 6 mm
- Panel Thickness, Min.: 1.5 mm
- Panel Thickness, Max.: 6 mm
- Grid Dimension: 50 x 60 mm
Environmental Conditions:
- Protection Rating: IP67, IP69K
- Ambient Temperature: +0 ... +80 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Scope of Delivery:
- The potentiometers are not included in the scope of delivery and must be obtained from the respective manufacturers.
Note:
- Mounting of potentiometers requires a central hole fastening and two different three-hole fastenings.
- Full Insulation: Yes
Mechanical Data:
- Mounting: Mounting flange
- Screw Tightening Torque: 0.6 Nm
Mechanical Data - Dimensions:
Environmental Conditions:
Scope of Delivery:
Note:
Type: NDAN6
