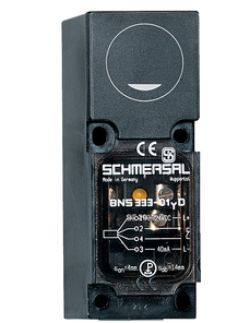

Schmersal 101169803 Safety Sensor, BNS333-01YV

The BNS 333-01YV-M20 is a magnetic safety sensor designed for industrial applications, meeting the highest safety standards. With a low coding level according to EN ISO 14119 and a robust housing made of glass-fiber-reinforced thermoplastic, the sensor offers reliable performance and long service life. It operates on a magnetic principle and is suitable for quasi-flush mounting conditions.

The sensor's active area is front-facing and is triggered by a magnet moving toward it. It provides a secure switching distance of 4 mm (ON") and 14 mm ("OFF) according to EN IEC 60947-5-3. An integrated status LED visualizes the operating condition – the LED lights up when the safety door is closed.

Electrically, the BNS 333-01YV-M20 supports a maximum switching voltage of 250 VAC, a switching current of up to 5 A, and a switching power of 1,250 W. It features 1 safety contact (NC) and a maximum switching frequency of 5 Hz. The sensor operates within a temperature range of -25 °C to +55 °C and meets IP65 protection standards.

Note: The actuator is not included in the scope of delivery. Suitable actuators are available as accessories.

Technical Data:

Ordering Details:

• Product Type: BNS 333-01YV-M20
• Part Number: 101169803
• EAN: 4030661296487
• eCl@ss Number: 27-27-44-01
• ETIM Number: EC002544

Approvals:

• Standards: BG-GS-ET-14, EN IEC 60947-5-3
• Safety Standard: EN ISO 13849-1

General Data:

• Operating Principle: Magnetic
• Coding Level: Low
• Housing Material: Glass-fiber-reinforced thermoplastic
• Gross Weight: 145 g
• Risk Time: max. 50 ms

Mechanical Properties:

• Active Area: Front-facing
• Actuation Element: Magnet
• Motion Direction: Frontal to active area
• Switching Distances:
- Sao (ON): 4 mm
- Sar (OFF): 14 mm

• Mounting Condition: Quasi-flush
• Dimensions (LxWxH): 39 x 52 x 90 mm

Electrical Properties:

• Max. Switching Voltage: 250 VAC
• Max. Switching Current: 5 A
• Max. Switching Power: 1,250 W
• Safety Contacts: 1 Normally Closed (NC)
• Max. Switching Frequency: 5 Hz

Environmental Conditions:

• Protection Rating: IP65
• Operating Temperature: -25 °C to +55 °C
• Vibration Resistance: 10–55 Hz, Amplitude 1 mm
• Shock Resistance: 30 g / 11 ms

Included:

• The actuator is not included in the scope of delivery.

Accessories:

• Recommended Actuators: BPS 300, BPS 303, BPS 303 SS
• Recommended Safety Control Units: SRB-E-301ST, SRB-E-201LC

Notes:

• Contact symbols are displayed with the safety guard closed.
• The LED lights up when the safety door is closed.

Type: BNS333-01YV
