Schmersal CSS 8-180-2P+DM-LST safety sensor 101169560
|
327,80 EUR |
|||||||||||
|
( 390,08 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311723 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101169560 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101169560:
Product Description in English:

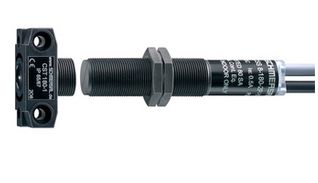

The CSS 8-180-2P+D-M-LST safety sensor is a versatile inductive safety sensor that can be used as both an end or single device and in series connections. It meets high safety requirements according to EN ISO 13849-1, EN IEC 60947-5-3, and EN IEC 61508, achieving Performance Level (PL) e, Category 4, and suitability for applications up to SIL 3.
The sensor features two safe digital outputs and an additional diagnostic output. The integrated multi-color LED displays the sensor's status in green, red, and yellow. It supports series connections of up to 16 sensors without compromising safety. The typical switching distance is 8 mm, with secured switching distances of 7 mm (ON) and 10 mm (OFF).
The housing is made of glass-fiber reinforced thermoplastic, ensuring durability. The sensor connects via an 8-pin M12 connector for both input and output. It has protection ratings of IP65 and IP65, making it ideal for use in industrial environments.
Technical Data:
Product Type:- CSS 8-180-2P+D-M-LST
Order Number:
- 101169560
EAN:
- 4030661296005
eCl@ss Numbers:
- Version 12.0: 27-27-46-01
- Version 11.0: 27-27-24-03
- Version 9.0: 27-27-24-03
Approvals:
- TÜV
- cULus
- UKCA
Operating Principle:
- Inductive
Housing Shape:
- Cylinder, threaded
Mounting Conditions:
- Non-flush
Sensor Topology:
- Series device / End or single device
Connection Technology:
- Cable Length: 2 m
- Connector Type: M12, 8-pin
Pin Assignment:
- PIN 1: A1 Ue
- PIN 2: X2 Safe Input 2
- PIN 3: A2 GND
- PIN 4: Y1 Safe Output 1
- PIN 5: Diagnostic Output
- PIN 6: X1 Safe Input 1
- PIN 7: Y2 Safe Output 2
- PIN 8: No function
Scope of Delivery:
- 2x Nuts M18 x 1
- Actuator not included
Type: CSS 8-180-2P+D-M-LST
Questions & answers
What is the delivery time of Schmersal CSS 8-180-2P+DM-LST safety sensor 101169560?
The article Schmersal CSS 8-180-2P+DM-LST safety sensor 101169560 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101169560 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal CSS 8-180-2P+DM-LST safety sensor 101169560 always at the best possible price. We can give you a discount of 2% on Schmersal CSS 8-180-2P+DM-LST safety sensor 101169560 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal CSS 8-180-2P+DM-LST safety sensor 101169560 we can offer you a price of 322,88 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
