Schmersal BN 20-RZ magnetic switch 101168090

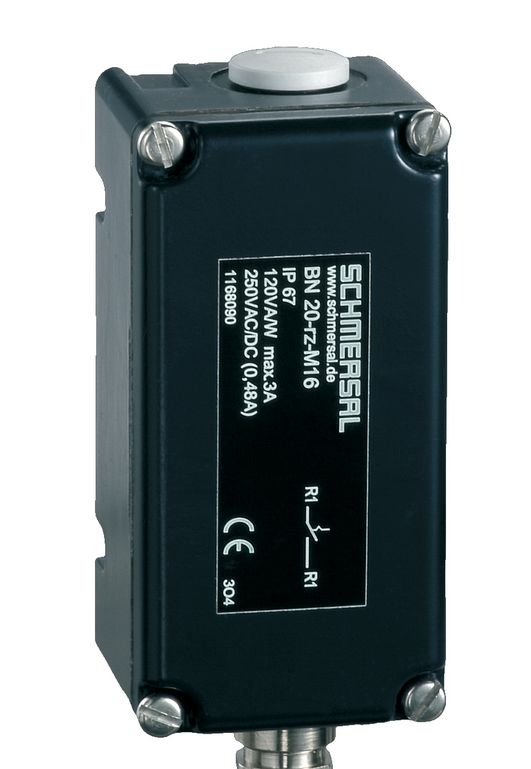

The BN 20-RZ-M16 is a magnetic proximity switch with a rectangular housing, designed for use in demanding industrial environments. Its magnetic operating principle ensures wear-free switching and provides a mechanical lifespan of at least 1 billion switching cycles.

The switch features a latching function and a preload magnet, ensuring high repeat accuracy and reliable switching operations. The switching distance can vary between 5 mm and 50 mm, depending on the type of actuator magnet used.

With an IP67 protection rating, the BN 20-RZ-M16 is well-protected against dust and water and operates in an ambient temperature range of -25 °C to +90 °C. It supports switching voltages up to 250 VAC and switching currents up to 3 A, with a maximum switching capacity of 120 W / 120 VA.

The switch uses reed contacts and is equipped with an M20 screw connection for easy installation. The actuator is not included and must be ordered separately.
Technical Data – BN 20-RZ-M16:

Order Information:

Product Type Designation: BN 20-RZ-M16
Article Number: 101168090
EAN: 4030661220567

Approvals:

Certificates: cULus

General Data:

Standards: EN IEC 60947-5-1
Operating Principle: Magnetic
Housing Design: Rectangular
Housing Material: Aluminium
Active Surface Material: Metal
Gross Weight: 290 g

Features:

Latching: Yes
Preload Magnet: Yes
Number of Latching Contacts: 1

Mechanical Data:

Actuation Plane: Side
Active Surface: Side
Actuation Element: Magnet
Minimum Mechanical Lifespan: 1,000,000,000 switching cycles
Maximum Actuation Speed: 18 m/s

Switching Distances According to EN IEC 60947-5-3:

Switching Distance Sn: 5 mm to 50 mm (depending on actuator magnet)
Repeat Accuracy R: 0.3 mm

Connection Technology:

Connection Type: M20 x 1.5 Screw Terminal

Dimensions:

Sensor Length: 47 mm
Sensor Width: 104 mm
Sensor Height: 52 mm

Environmental Conditions:

Protection Rating: IP67
Ambient Temperature: -25 °C to +90 °C
Shock Resistance: 50 g sinusoidal vibration

Electrical Data:

Maximum Switching Voltage: 250 VAC
Maximum Switching Current: 3 A
Maximum Switching Power: 120 W / 120 VA
Contact Type: Latching
Bounce Time: 0.3 ms to 0.6 ms
Maximum Switching Frequency: 1,080,000 operations/hour

Digital Outputs:

Switching Elements: Reed Contact

Scope of Delivery:

The actuator is not included.

Recommended Actuators:

BP 10 S, BP 20 S, BP 15 S, BP 31 S, BP 34 S, BP 21 S, BE 20 S
BP 10 N, BP 20 N, BP 15 N, BP 31 N, BP 34 N, BP 21 N, BE 20 N
Various combinations such as 2x BP 11 S, 2x BP 15/2 N, etc.

Notes:

The normally open or normally closed function depends on the actuation direction, actuator magnet, and magnet polarity.
Ensure the color alignment between the switch and actuator: Red (S) on Red (S) and Green (N) on Green (N).
Type: BN 20-RZ
