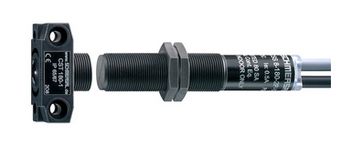

Schmersal CSS 8-180-2P-Y-LST safety sensor 101167898
|
328,61 EUR |
|||||||||||
|
( 391,05 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311717 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101167898 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101167898:
Product Description in English:
The CSS 8-180-2P-Y-LST safety sensor is an inductive sensor specifically designed for series connections in safety-critical applications. It complies with high safety standards according to EN ISO 13849-1, EN IEC 60947-5-3, and EN IEC 61508, achieving Performance Level (PL) e and Category 4, and is suitable for applications up to SIL 3.
The sensor features a cylindrical shape (M18 thread) and is made of glass-fiber reinforced thermoplastic, making it highly robust and durable. The typical switching distance is 8 mm, with secured switching distances of 7 mm (ON) and 10 mm (OFF). Thanks to its cascading capability, up to 16 sensors can be connected in series without compromising safety.
The sensor has two safe digital outputs and an integrated multi-color LED status indicator that displays the status in green, red, and yellow. The sensor has both an M12 coupling (4-pin) input and an M12 plug (4-pin) output connection. It is rated IP65 and IP65, ensuring reliable operation in industrial environments.
Technical Data:
Product Type:- CSS 8-180-2P-Y-LST
Order Number:
- 101167898
EAN:
- 4030661219523
eCl@ss Numbers:
- Version 12.0: 27-27-46-01
- Version 11.0: 27-27-24-03
- Version 9.0: 27-27-24-03
ETIM Numbers:
- Version 7.0: EC001829
- Version 6.0: EC001829
Approvals:
- TÜV
- cULus
- UKCA
Standards:
- EN IEC 60947-5-3
- EN IEC 61508
Operating Principle:
- Inductive
Housing Shape:
- Cylinder, threaded
Mounting Conditions:
- Non-flush
Sensor Topology:
- Cascadable device
Housing Material:
- Plastic, glass-fiber reinforced thermoplastic
Active Surface Material:
- Plastic, glass-fiber reinforced thermoplastic
Nut Material:
- Plastic, glass-fiber reinforced thermoplastic
Response Time, maximum:
- 30 ms
Risk Time, maximum:
Gross Weight:
Features:
Switching Distances:
Connection Technology:
Dimensions:
Environmental Conditions:
Electrical Data:
Status Indicator:
Pin Assignment:
Scope of Delivery:
Accessories:
Note:
Type: CSS 8-180-2P-Y-LST
Questions & answers
What is the delivery time of Schmersal CSS 8-180-2P-Y-LST safety sensor 101167898?
The article Schmersal CSS 8-180-2P-Y-LST safety sensor 101167898 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101167898 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal CSS 8-180-2P-Y-LST safety sensor 101167898 always at the best possible price. We can give you a discount of 2% on Schmersal CSS 8-180-2P-Y-LST safety sensor 101167898 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal CSS 8-180-2P-Y-LST safety sensor 101167898 we can offer you a price of 318,75 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
