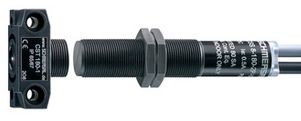

Schmersal 101167897 CSS 8-180-2P-E-LST safety sensor content_copy

The CSS 8-180-2P-E-LST safety sensor is a reliable inductive sensor designed for use in safety-critical applications. It monitors safety systems such as doors or flaps in machines and equipment, meeting high safety standards according to EN ISO 13849-1, EN IEC 60947-5-3, and EN IEC 61508. The sensor achieves Performance Level (PL) e and Category 4, making it suitable for applications up to SIL 3.

With a cylindrical shape (M18 thread) and a robust housing made of glass-fiber reinforced thermoplastic, the sensor is highly durable. The typical switching distance is 8 mm, with secured switching distances of 7 mm (ON) and 10 mm (OFF). The integrated multi-color LED displays the status in green, red, and yellow. The sensor supports series connections of up to 16 sensors.

The CSS 8-180-2P-E-LST features two safe digital outputs, both of which are p-switching. It operates at a 24 VDC voltage, and its IP65 and IP65 protection ratings make it ideal for industrial environments.

Technical Data:

Product Type:

• CSS 8-180-2P-E-LST

Order Number:

• 101167897

EAN:

• 4030661219516

eCl@ss Numbers:

• Version 12.0: 27-27-46-01
• Version 11.0: 27-27-24-03
• Version 9.0: 27-27-24-03

ETIM Numbers:

• Version 7.0: EC001829
• Version 6.0: EC001829

Approvals:

• TÜV
• cULus
• UKCA

Standards:

• EN IEC 60947-5-3
• EN IEC 61508

Operating Principle:

• Inductive

Housing Shape:

• Cylinder, threaded

Mounting Conditions:

• Non-flush

Sensor Topology:

• End or single device

Housing Material:

• Plastic, glass-fiber reinforced thermoplastic

Active Surface Material:

• Plastic, glass-fiber reinforced thermoplastic

Nut Material:

• Plastic, glass-fiber reinforced thermoplastic

Gross Weight:

• 140 g

Features:

Short-circuit detection: Yes

Cross-circuit detection: Yes

Safety functions: Yes

Integrated status indicator: Yes

Number of safe digital outputs: 2

Series connection of sensors: Up to 16

Switching Distances:

Typical switching distance: 8 mm

Secured switching distance ON Sao: 7 mm

Secured switching distance OFF Sar: 10 mm

Mechanical Data:

Sensor ISO Thread: M18

Wrench Size: 24 SW

Sensor Length: 92 mm

Environmental Conditions:

Protection Rating: IP65, IP65

Ambient Temperature: -25 ... +60 °C

Electrical Data:

Operating Voltage: 24 VDC

Rated Operating Current: 1,000 mA

Safe Digital Outputs: 500 mA

Switching Frequency: 3 Hz

Status Indicator:

Multi-color LED (Green, Red, Yellow)

Scope of Delivery:

2x Nuts M18 x 1

Actuator not included
