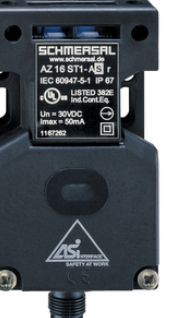

Schmersal AZ 16 ST1-AS R AS-i safety switch 101167262
|
213,83 EUR |
|||||||||||
|
( 254,46 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 691887 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101167262 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101167262:
The switch supports AS-i Safety Slave Version 2.1 and provides dynamic code transmission across two data channels. It also includes integrated LED status indicators to display power supply, communication errors, and release status.
Depending on the application, the safety switch achieves a Performance Level up to d and a Safety Integrity Level (SIL) up to 2. The mechanical connection is established via a 4-pin M12 plug connector located at the bottom of the switch.
With an IP67 protection rating and a mechanical lifespan of 1 million switching cycles, the switch is suitable for use in dusty and humid environments.
Technical Data – AZ 16 ST1-AS R ASI-SAW:
Order Information:
Product Type Designation: AZ 16 ST1-AS R ASI-SAW
Article Number: 101167262
EAN: 4030661218427
Approvals:
Certificates: cULus, ASi-SaW
General Data:
Standards:
EN IEC 62026-2
EN ISO 13849-1
EN IEC 60947-5-1
EN IEC 61508
Housing Material: Plastic, glass-fiber reinforced thermoplastic, self-extinguishing
Maximum Response Time: 100 ms
Gross Weight: 115 g
Features:
Increased Latching Force: Yes
Integrated Status Display: Yes
Safety Considerations:
Standards: EN IEC 61508
Performance Level: c / d
Category: 1 / 3
PFH Value:
1.14 x 10⁻⁶ /h (up to PL c)
1.01 x 10⁻⁷ /h (up to PL d)
Safety Integrity Level (SIL): 1 / 2
Service Life: 20 years
Mechanical Data:
Minimum Mechanical Lifespan: 1,000,000 switching cycles
Latching Force: 30 N
Connection Technology:
Connector Position: Bottom
Connection Type: M12 plug connector, 4-pin, A-coded
Dimensions:
Length: 30 mm
Width: 52 mm
Height: 90 mm
Environmental Conditions:
Protection Rating: IP67
Ambient Temperature: -25 °C to +60 °C
Storage and Transport Temperature: -25 °C to +85 °C
Protection Class: II
Electrical Data:
Current Consumption: 50 mA
AS-Interface:
Rated Operating Voltage: 18 … 31.6 VDC (reverse polarity protection)
AS-Interface Specification:
AS-i Specification: Safety-Slave
AS-i Version: V 2.1
AS-i Profile: S-0.B.F.E
AS-i IO-Code: 0x0
AS-i ID-Code: 0xB
AS-i ID-Code1: 0xF
AS-i ID-Code2: 0xE
AS-i Inputs:
Channel 1: Data bits DI 0/DI 1 = dynamic code transmission
Channel 2: Data bits DI 2/DI 3 = dynamic code transmission
Status Indicators:
Green LED: Power Supply
Red LED: Communication Error / Slave Address = 0
Yellow LED: Release Status
Scope of Delivery:
The actuator is not included.
Type: AZ16ST1-ASR
Questions & answers
What is the delivery time of Schmersal AZ 16 ST1-AS R AS-i safety switch 101167262?
The article Schmersal AZ 16 ST1-AS R AS-i safety switch 101167262 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101167262 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ 16 ST1-AS R AS-i safety switch 101167262 always at the best possible price. We can give you a discount of 2% on Schmersal AZ 16 ST1-AS R AS-i safety switch 101167262 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal AZ 16 ST1-AS R AS-i safety switch 101167262 we can offer you a price of 210,62 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
