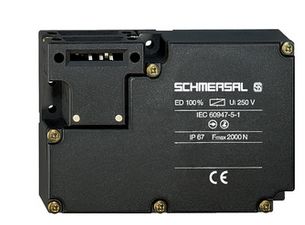

Schmersal AZM 161CC-12/12RK-024 safety locking device 101166283
|
251,17 EUR |
|||||||||||
|
( 298,89 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 604786 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101166283 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101166283:
The sensor features a front-facing active area and is activated by a magnet moving frontally toward it. Secure switching distances of 8 mm (Sao) and 18 mm (Sar) ensure precise operation. The BNS 16-12ZV supports an electrical lifespan of up to 25 million switching cycles and requires an evaluation unit for operation. It is suitable for environments with temperatures ranging from -25 °C to +70 °C and meets the IP67 protection standard.
Electrically, the sensor offers 1 normally open (NO) and 2 normally closed (NC) contacts with a maximum switching power of 10 W. Its compact dimensions and versatile connection options make it easy to install and compatible with a wide range of safety control devices.
Technical Data:
Ordering Details:
- Product Type: BNS 16-12ZV
- Part Number: 101172553
- EAN: 4030661301129
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
Approvals:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
General Data:
- Operating Principle: Magnetic
- Coding Level: Low
- Housing Material: Glass-fiber-reinforced thermoplastic
- Gross Weight: 125 g
Mechanical Properties:
- Active Area: Front-facing
- Actuation Element: Magnet
- Motion Direction: Frontal to active area
- Switching Distances: - Sao (ON): 8 mm
- Mounting Conditions: Non-flush
- Dimensions (LxWxH): 39 x 52 x 90 mm
- Sar (OFF): 18 mm
Electrical Properties:
- Max. Switching Voltage: 100 VAC / 100 VDC
- Max. Switching Current: 0.4 A
- Max. Switching Power: 10 W
- Switching Elements: 1 Normally Open (NO), 2 Normally Closed (NC)
- Switching Frequency: max. 5 Hz
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -25 °C to +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Included:
- The actuator is not included in the scope of delivery.
Accessories:
- Recommended Actuator: BPS 16
- Recommended Safety Control Units: SRB-E-301ST, SRB-E-201LC
Notes:
- Contact symbols are displayed with the safety guard closed.
Type: AZM161CC-12/12RK-024
Questions & answers
What is the delivery time of Schmersal AZM 161CC-12/12RK-024 safety locking device 101166283?
The article Schmersal AZM 161CC-12/12RK-024 safety locking device 101166283 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101166283 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 161CC-12/12RK-024 safety locking device 101166283 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 161CC-12/12RK-024 safety locking device 101166283 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal AZM 161CC-12/12RK-024 safety locking device 101166283 we can offer you a price of 247,40 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
