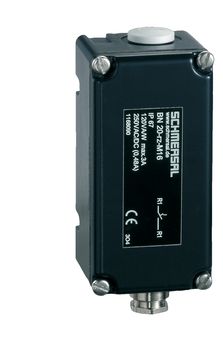

Schmersal BN20-11RZ magnetic switch
|
195,10 EUR |
|||||||||||
|
( 232,17 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 111080 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101165310 | ||||||||||
| UPC/EAN: | 4030661208909 | ||||||||||
| Weight: | 0.29 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101165310:
Product description in English:
The magnetic safety sensor BN 20-11RZ-M16 provides reliable and precise monitoring of protective devices in demanding industrial applications. With a robust rectangular design made of aluminum and an active surface made of metal, it ensures exceptional stability and durability. The sensor is designed for a mechanical lifespan of at least 1 billion switching cycles and supports a maximum actuation speed of 18 m/s.
Thanks to its variable switching distances ranging from 5 mm to 50 mm (depending on the actuator magnet used), the sensor is highly versatile. With an IP67 protection rating and an operating temperature range of -25 °C to +90 °C, it is suitable for harsh environments. The sensor features two latching contacts configured as normally closed (NC) and normally open (NO) and utilizes reed contacts as switching elements.
Its compact design, measuring 47 mm in length, 104 mm in width, and 52 mm in height, simplifies installation. The sensor is equipped with an M20 x 1.5 screw connection, and the matching actuator is sold separately.
Technical specifications:
Ordering information:
- Product designation: BN 20-11RZ-M16
- Article number: 101165310
- EAN: 4030661208909
- eCl@ss number: 27-27-43-02
- ETIM number: EC002544
Approvals and standards:
- Standards: EN IEC 60947-5-1
Mechanical specifications:
- Operating principle: Magnetic
- Housing design: Rectangular
- Dimensions: Length 47 mm, Width 104 mm, Height 52 mm
- Protection class: IP67
- Lifespan: 1,000,000,000 switching cycles
- Actuation speed: max. 18 m/s
- Switching distances: Up to 50 mm (depending on actuator magnet)
Electrical specifications:
- Switching voltage: max. 250 VAC
- Switching current: max. 3 A
- Switching power: max. 120 W / 120 VA
- Switching elements: Reed contact, normally closed (NC) / normally open (NO)
- Maximum switching frequency: 1,080,000 operations/h
Environmental conditions:
- Ambient temperature: -25 °C to +90 °C
- Shock resistance: 50 g (sinusoidal)
Scope of delivery:
- Safety sensor BN 20-11RZ-M16
- Note: Actuator not included
Recommended accessories:
- Actuators: BP 10 S, BP 15 S, BP 34 S, BP 20 S, BP 31 S, BP 11 S, BP 12 S, BP 21 S, BE 20 S, and other variants
Type: BN 20-11RZ
Questions & answers
What is the delivery time of Schmersal BN20-11RZ magnetic switch?
The article Schmersal BN20-11RZ magnetic switch is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101165310 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BN20-11RZ magnetic switch always at the best possible price. We can give you a discount of 2% on Schmersal BN20-11RZ magnetic switch if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal BN20-11RZ magnetic switch we can offer you a price of 192,17 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
