Schmersal NMEFRT indicator light LED round flat red 101163601 content_copy

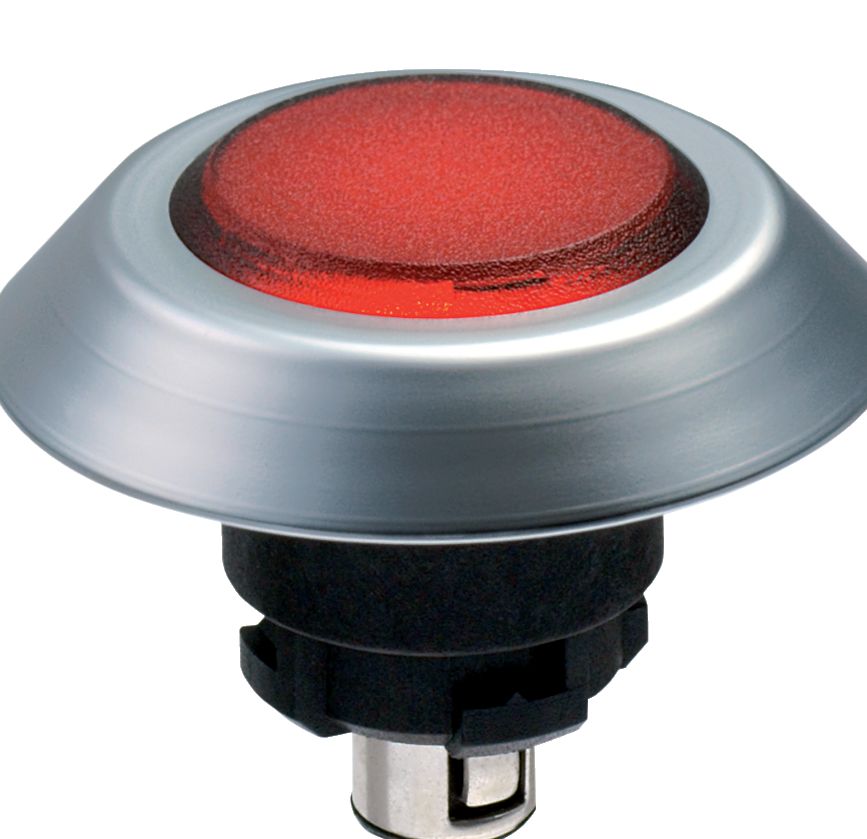

The NMEFRT indicator light is an elegant and reliable display component designed for front panel mounting. Featuring a flat, red PA (12) cap and a silver chrome-plated ABS bezel, it is ideal for applications in demanding hygienic environments. The indicator light is illuminated, offers IP67 and IP69K protection, and operates within a wide temperature range.

Technical Data:

Product Designation:

• NMEFRT

Article Number:

• 101163601

EAN:

• 4250116200566

eCl@ss Numbers:

• Version 12.0: 27-37-12-11
• Version 11.0: 27-37-12-11
• Version 9.0: 27-37-12-11

ETIM Numbers:

• Version 7.0: EC000223
• Version 6.0: EC000223

Approvals - Regulations:

• Certificates: cULus, Hygiene certified
• Standards: EN IEC 60947-5-1, EN IEC 60947-1

General Data:

• Design: Indicator light
• Front panel mounting: Yes
• Shape: Round, flat cap
• Installation Conditions: Any orientation
• Sealing Type: Membrane, lip seals, form seals
• Cap Material: PA (12)
• Bezel Material: Chrome-plated ABS
• Cap Color: Red
• Bezel Color: Silver
• Gross Weight: 50 g

Features:

• Illuminated: Yes
• Mounting Flange: Yes
• Full Insulation: Yes
• Integrated Indicator: Yes

Mechanical Data:

• Mounting: Mounting flange ELM
• Screw Tightening Torque: 0.6 Nm

Dimensions:

• Note (Mounting Height): Height above front panel
• Overall Diameter: 44.5 mm
• Cap Height: 2 mm
• Cap Diameter: 26 mm
• Bezel Diameter: 44.5 mm
• Mounting Diameter: 22.3 mm
• Front Plate Thickness, min./max.: 1.5 mm / 6 mm
• Grid Spacing: 50 x 50 mm

Environmental Conditions:

• Protection Class: IP67, IP69K
• Ambient Temperature: -25 ... +80 °C
• Shock Resistance: 30 g / 18 ms
• Vibration Resistance: 20 g / 10 ... 150 Hz

Status Indicator:

• Note (Integrated Status Indicator): for 24 VAC/DC

Scope of Delivery:

• Note (Scope of Delivery, Quantity, and Type): Includes mounting flange ELM (1014387)

Note:

• General Note: For other input voltages, a specific lighting element must be used.
