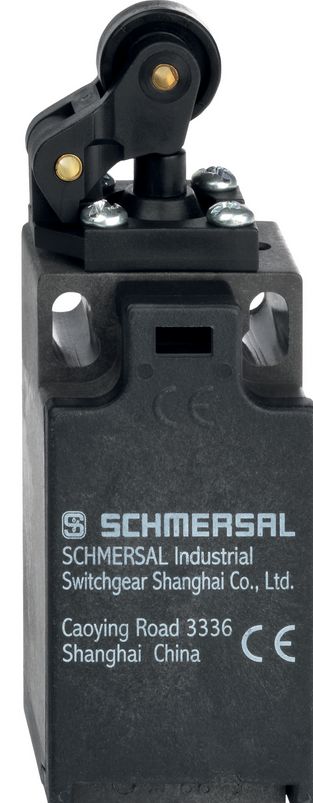

Schmersal Z1R 236-11Z position switch art.roller lever 101156129
|
33,11 EUR |
|||||||||||
|
( 39,40 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 636616 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101156129 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101156129:
The actuator, a roller lever, enabled precise triggering with a minimum actuation force of 9 N. A mechanical lifespan of 20 million operating cycles and an electrical lifespan of 20 million NC cycles emphasized the device's reliability and longevity. The switch operated within a temperature range of -30 °C to +80 °C, making it suitable for various industrial applications.
Electrically, the Z1R 236-11Z-M20 featured one normally open (NO) and one normally closed (NC) contact and supported voltages up to 230 VAC and 24 VDC. It offered a maximum switching frequency of 5,000 operations per hour and came with M20 x 1.5 screw terminals for easy installation.
Note: This product is no longer available.
Technical Data:
Ordering Details:
- Product Type: Z1R 236-11Z-M20
- Part Number: 101156129
- EAN: 4030661177380
- eCl@ss Number: 27-27-26-01
- ETIM Number: EC000030
Approvals:
- Certifications: cULus, CCC
- Standards: BG-GS-ET-15, EN ISO 13849-1, EN IEC 60947-5-1
General Data:
- Housing Type: Standard form
- Housing Material: Glass-fiber-reinforced plastic
- Safety Contacts: 1
- Auxiliary Contacts: 1
- Gross Weight: 55 g
Mechanical Properties:
- Actuator: Roller lever
- Mechanical Lifespan: 20,000,000 operations
- Actuation Force: min. 9 N
- Actuation Speed: 27 mm/min to 1 m/s
- Dimensions (LxWxH): 30 x 30 x 89.5 mm
Electrical Properties:
- Rated Voltage: 230 VAC / 24 VDC
- Max. Switching Current: 10 A
- Switching Elements: 1 Normally Open (NO), 1 Normally Closed (NC)
- Contact Material: Silver
- Switching Principle: Snap-action
Environmental Conditions:
Note:
- This product is no longer available.
Type: Z1R 236-11Z
Questions & answers
What is the delivery time of Schmersal Z1R 236-11Z position switch art.roller lever 101156129?
The article Schmersal Z1R 236-11Z position switch art.roller lever 101156129 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 52 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101156129 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal Z1R 236-11Z position switch art.roller lever 101156129 always at the best possible price. We can give you a discount of 2% on Schmersal Z1R 236-11Z position switch art.roller lever 101156129 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Schmersal Z1R 236-11Z position switch art.roller lever 101156129 we can offer you a price of 32,61 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
