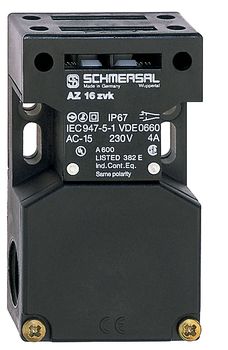

Schmersal AZ 16ZVK-M16, Safety Switches
|
44,39 EUR |
|||||||||||
|
( 52,82 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 102386 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101152887 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101152887:
The switch features a positively driven Normally Closed (NC) contact and a Normally Open (NO) contact, operating on a slow-action switching principle. It offers a mechanical lifespan of at least 1 million operations and is classified up to Performance Level d (when used in a dual-channel configuration). With an IP67 protection rating and an operating temperature range of -30 °C to +80 °C, the AZ 16 ZVK-M16 is ideal for challenging environments.
Installation is facilitated by screw terminals and three cable entries (M16 x 1.5). The switch supports solid and flexible cables with a cross-section ranging from 0.25 mm² to 2.5 mm². The maximum actuation speed is 2 m/s, and the positive opening force is at least 10 N.
Note: Electrical lifespan and further details are available upon request.
Technical Data:
Ordering Details:
- Product Type: AZ 16 ZVK-M16
- Part Number: 101152887
- EAN: 4030661166773
- eCl@ss Number: 27-27-26-02
- ETIM Number: EC002592
Approvals:
- Certifications: cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 120 g
Mechanical Properties:
- Mechanical Lifespan: min. 1,000,000 operations
- Positive Opening Travel: 8 mm
- Positive Opening Force: min. 10 N
- Actuation Speed: max. 2 m/s
- Dimensions (LxWxH): 30 x 52 x 90 mm
Electrical Properties:
- Rated Insulation Voltage: 500 V
- Continuous Current: 10 A
- Switching Elements: 1 Normally Closed (NC), 1 Normally Open (NO)
- Switching Principle: Slow-action, positively driven opener
- Max. Switching Frequency: 4,000 /h
- Load Capacity: - AC-15: 230 VAC / 4 A
- Protection Rating: IP67
- Operating Temperature: -30 °C to +80 °C
- DC-13: 24 VDC / 4 A
Environmental Conditions:
Connection Technology:
- Cable Entries: 3 x M16 x 1.5
- Cable Cross-Section: 0.25 mm² to 2.5 mm² (including ferrules)
Notes:
- Suitable for single-channel use with fault exclusion.
- Ideal for dual-channel use with appropriate logic unit.
- Service Life: 20 years.
Type: AZ 16ZVK-M16
