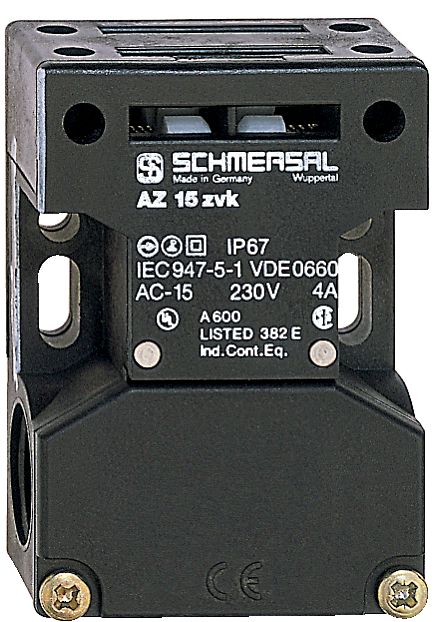

AZ 15ZVK Schmersal Safety switches, momentary switches without actuator
|
37,00 EUR |
|||||||||||
|
( 44,03 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 899980 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101152787 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101152787:
The AZ 15 ZVK-M16 operates with a slow-action switching principle and a positively driven NC contact, meeting the highest safety requirements. It is equipped with one safety contact (NC) and is rated for up to 2 million switching cycles. With an IP67 protection rating and an operating temperature range of -30 °C to +80 °C, the switch is suitable for demanding environments.
Installation is simplified with screw terminals and three cable entries (M16 x 1.5). The switch supports various cable types, including solid and flexible wires. Its compact dimensions of 30 x 52 x 75 mm allow for space-saving installation.
Note: The actuator is not included in the delivery and must be ordered separately.
Technical Data:
Ordering Details:
- Product Type: AZ 15 ZVK-M16
- Part Number: 101152787
- EAN: 4030661166308
- eCl@ss Number: 27-27-26-02
- ETIM Number: EC002592
Approvals:
- Certifications: TÜV, cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level: Low
- Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
- Gross Weight: 100 g
Mechanical Properties:
- Mechanical Lifespan: min. 1,000,000 operations
- Positive Opening Travel: 8 mm
- Positive Opening Force: min. 10 N
- Actuation Speed: max. 2 m/s
- Dimensions (LxWxH): 30 x 52 x 75 mm
Electrical Properties:
- Thermal Continuous Current: 10 A
- Operating Voltage: 230 VAC / 24 VDC
- Switching Element: 1 Normally Closed (NC) contact
- Max. Switching Frequency: 4,000 /h
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -30 °C to +80 °C
Included:
- The actuator is not included in the delivery.
Notes:
- Supports solid and flexible wires.
- Suitable for use in elevators.
Type: AZ15ZVK
Questions & answers
What is the delivery time of AZ 15ZVK Schmersal Safety switches, momentary switches without actuator?
The article AZ 15ZVK Schmersal Safety switches, momentary switches without actuator is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101152787 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you AZ 15ZVK Schmersal Safety switches, momentary switches without actuator always at the best possible price. We can give you a discount of 2% on AZ 15ZVK Schmersal Safety switches, momentary switches without actuator if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of AZ 15ZVK Schmersal Safety switches, momentary switches without actuator we can offer you a price of 35,89 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
