Schmersal AZ 16-03ZI-B1-2053 ball detent. Safety switch 101150058

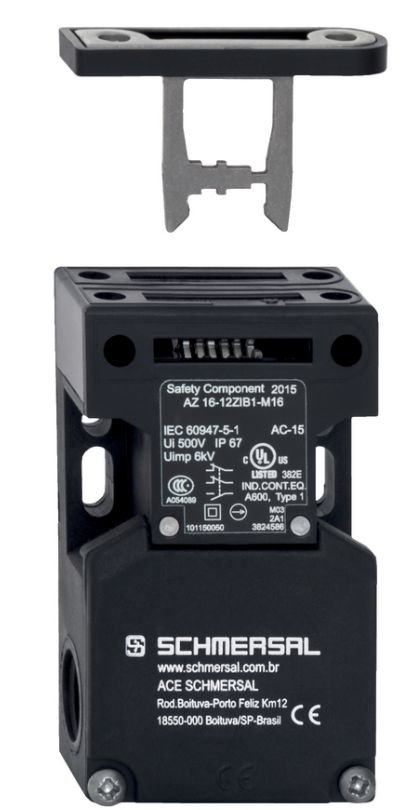

The AZ 16-03ZIB1-M16-2053 electromechanical safety switch offers high coding according to EN ISO 14119 and three safety contacts. The housing is made of glass-fiber-reinforced thermoplastic, and the actuator is stainless steel, ensuring robustness and tamper protection for industrial applications.

Technical Data:

Product Designation:

• AZ 16-03ZIB1-M16-2053

Article Number:

• 101150058

EAN:

• 4030661154527

eCl@ss Numbers:

• Version 12.0: 27-27-26-02
• Version 11.0: 27-27-26-02
• Version 9.0: 27-27-26-02

ETIM Numbers:

• Version 7.0: EC002592
• Version 6.0: EC002592

Approvals - Standards:

• Certificates: cULus
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): High
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Actuator Material: Stainless Steel
• Gross Weight: 174 g

Features:

• Reset Force: Yes
• Number of Safety Contacts: 3
• Number of Cable Entries: 3

Safety Consideration:

• Standards: EN IEC 60947-5-1
• Performance Level, up to: c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• Note: Electrical service life upon request.
• Service Life: 20 years

Safety Consideration - Fault Exclusion:

• Performance Level, up to: d
• Category: 3
• Note: For two-channel use with suitable logic unit.

Mechanical Data:

• Minimum Actuation Radius: 250 mm
• Actuator: Straight, Rigid
• Mechanical Service Life, Minimum: 1,000,000 cycles
• Retention Force, Adjustable up to: 100 N
• Forced Opening Travel: 8 mm
• Forced Opening Force per NC Contact, Minimum: 10 N
• Forced Opening Force, Minimum: 30 N
• Maximum Actuation Speed: 2 m/s
• Mounting: Screws (2x M6)

Mechanical Data - Connection Technology:

• Cable Entry: 3 x M16 x 1.5
• Connection Type: Screw terminals
• Connection Cross Section: 0.75 mm² - 2.5 mm² (incl. ferrules)
• Suitable Cable Types: Solid single-core, Solid multi-core, Flexible

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 52 mm
• Sensor Height: 90 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -30 to +80 °C
• Storage and Transport Temperature: -40 to +85 °C
• Permissible Altitude Above Sea Level, Maximum: 2,000 m

Environmental Conditions - Insulation Ratings:

• Rated Insulation Voltage Ui: 500 V
• Rated Impulse Withstand Voltage Uimp: 6 kV
• Overvoltage Category: III
• Pollution Degree: 3

Electrical Data:

Thermal Continuous Current: 10 A

Conditional Short-Circuit Current: 1,000 A

Switching Element: 3 NC contacts

Switching Principle: Slow-action, positive-opening NC contacts

Maximum Switching Frequency: 4,000 /h

Contact Material: Silver

Electrical Data - Safety Contacts:

Voltage (AC-15): 230 VAC

Current (AC-15): 4 A

Voltage (DC-13): 24 VDC

Current (DC-13): 4 A

Included in Delivery:

Cover plugs for unused openings

Notes:

The hinge pivot and the top edge of the safety switch must be aligned (+5 mm).

Minimum actuation radius for rotating protective devices: 250 mm.

Actuator not available separately.

Type: AZ 16-03ZI-B1-2053 MIT KUGELRASTUNG
