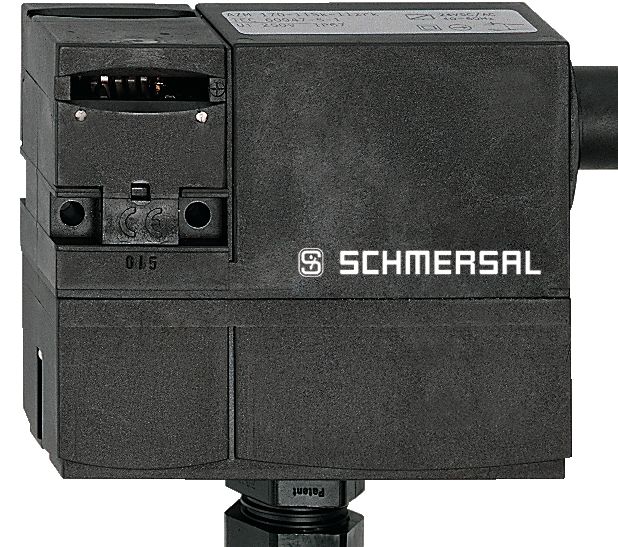

Schmersal AZM 170SK-02ZRK-2197 24VAC/DC safety locking 101144261

Sales unit: 1 Schmersal Safety Switch AZM 170SK-02ZRK-2197 24VAC/DC

Order Details:

• Product Type Designation: AZM 170SK-02ZRK-2197 24VAC/DC
• Article Number (Order Number): 101144261
• EAN (European Article Number): 4030661132099
• eCl@ss Number, Version 12.0: 27-27-26-03
• eCl@ss Number, Version 11.0: 27-27-26-03
• eCl@ss Number, Version 9.0: 27-27-26-03
• ETIM Number, Version 7.0: EC002593
• ETIM Number, Version 6.0: EC002593

Approvals and Regulations:

• Certificates: IFA, cULus, CCC
• Standards:
- EN ISO 13849-1
- EN ISO 14119
- EN IEC 60947-5-1


General Data:

• Coding level according to EN ISO 14119: Low
• Operating principle: Electromechanical
• Housing material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross weight: 305 g

General Features:

• Closed current principle: Yes
• Auxiliary release: Yes
• Number of approach directions: 2
• Number of safety contacts: 2

Safety Consideration:

• Standards: EN ISO 13849-1
• Performance Level, up to: c
• Category: 1
• B10D NC (normally closed): 2,000,000 operations
- Note: Electrical lifespan upon request.

• B10D NO (normally open): 1,000,000 operations
- Note: At 10% Ie and resistive load

• Service life: 20 years

Fault Exclusion:

• Usable if fault exclusion for a hazardous failure of the single-channel mechanism is permissible, and adequate tamper protection is ensured.
• Performance Level, up to: d
• Category: 3
• Note: In dual-channel operation and with appropriate logic unit.
• Service life: 20 years

Mechanical Data:

• Mechanical life, min.: 1,000,000 operations
• Holding force FZh according to EN ISO 14119: 1,000 N
• Holding force Fmax, max.: 1,300 N
• Latching force: 30 N
• Positive opening distance: 11 mm
• Positive opening force per NC contact, min.: 8.5 N
• Positive opening force, min.: 17 N
• Actuation speed, max.: 2 m/s
• Mounting: Screws
- Screw type: 2x M5
- Tightening torque for housing cover, min.: 0.7 Nm
- Tightening torque for housing cover, max.: 1 Nm
- Note: Torx T10


Mechanical Connection Technology:

• Cable entry: 1 x M20 x 1.5
• Connection type: Screw terminals
• Conductor cross-section:
- Minimum: 0.25 mm²
- Maximum: 1.5 mm² (incl. ferrules)

• Permissible cable types:
- Rigid single-core
- Rigid multi-core
- Flexible


Mechanical Dimensions:

• Sensor length: 30 mm
• Sensor width: 108 mm
• Sensor height: 100.5 mm

Environmental Conditions:

• Protection rating: IP67
• Ambient temperature: -25 ... +60 °C
• Storage and transport temperature: -25 ... +85 °C
• Note (Relative humidity): Non-condensing, non-icing
• Protection class: II
• Permissible installation height above sea level, max.: 2,000 m

Insulation Values:

• Rated insulation voltage Ui: 250 VAC
• Rated impulse withstand voltage Uimp: 4 kV
• Overvoltage category: III
• Pollution degree: 3

Electrical Data:

• Rated control supply voltage: 24 VAC/DC
• Conditional short-circuit current: 1,000 A
• Electrical power consumption, max.: 12 W
• Switching element: 2 NC
- Note: Changeover with double interruption Zb or 2 NC, electrically separated contact bridges

• Switching principle: Slow-action, positively driven NC contact
• Maximum switching frequency: 1,000 /h
• Contact material (electrical): Silver

Magnet Control:

• Magnet duty cycle: 100 %
• Test pulse duration, max.: 5 ms
• Test pulse interval, min.: 50 ms

Safety Contacts:

• Voltage, usage category AC-15: 230 VAC
• Current, usage category AC-15: 4 A
• Voltage, usage category DC-13: 24 VDC
• Current, usage category DC-13: 4 A

Auxiliary Contacts:

• Voltage, usage category AC-15: 230 VAC

Other Data:

• Application:
- Movable protective devices
- Removable protective devices
- Rotating protective devices


Scope of Delivery:

• Actuator not included in delivery.
• Slotted closure

Auxiliary Release:

• Right, bottom
• For manual unlocking with M5 triangular key (available as accessory)
• Additional side auxiliary release
• For manual unlocking with M3 triangular key (included in delivery)

Type: AZM 170SK-02ZRK-2197 24VAC/DC
