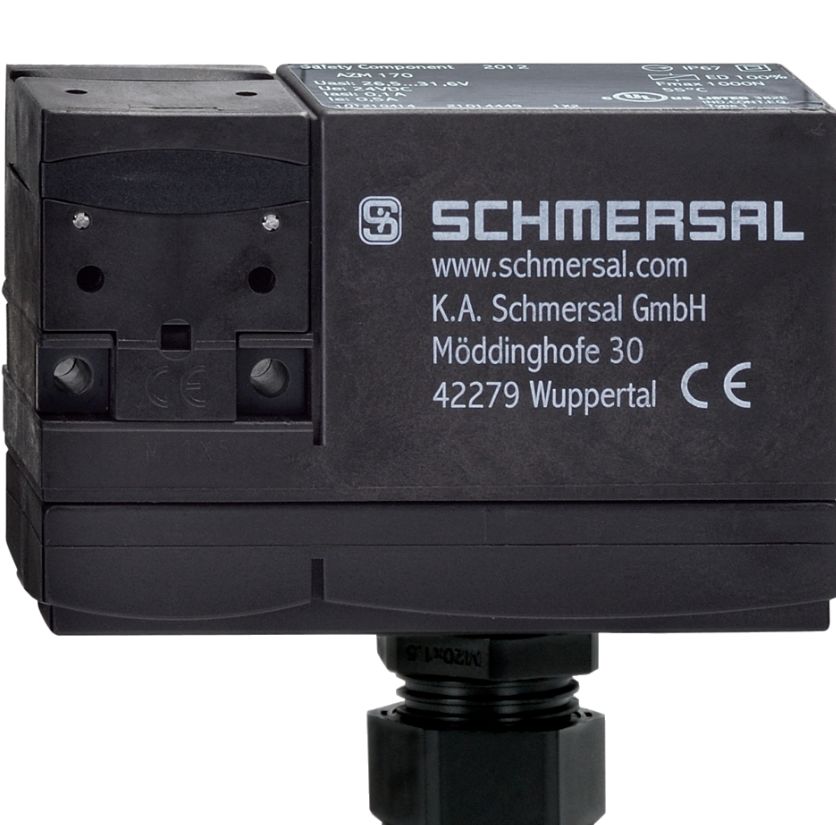

Schmersal AZM 170-02zrka 24VAC / DC, interlock content_copy

The AZM 170-02ZRKA 24VAC/DC is an electromechanical safety switch designed for industrial applications. It meets the highest safety standards according to EN ISO 13849-1, EN ISO 14119, and EN IEC 60947-5-1. With a robust housing made of glass-fiber-reinforced, self-extinguishing thermoplastic, this switch offers durability and resistance to external influences.

The switch operates on the working current principle and features two positively driven Normally Closed (NC) contacts. A maximum locking force of 1,300 N ensures reliable safety, even in demanding conditions. The AZM 170-02ZRKA is suitable for applications involving sliding, removable, or hinged guards.

With an IP67 protection rating and an operating temperature range of -25 °C to +60 °C, the switch is ideal for harsh environments. The cutting-clamp connection technology allows for easy wiring without ferrules. Wiring is facilitated through one cable entry (M20 x 1.5), supporting flexible cables with cross-sections from 0.75 mm² to 1 mm².

Note: The actuator is not included in the delivery. An optional M5 triangular key for manual release is available as an accessory.

Technical Data:

Ordering Details:

• Product Type: AZM 170-02ZRKA 24VAC/DC
• Part Number: 101141020
• EAN: 4030661120294
• eCl@ss Number: 27-27-26-03
• ETIM Number: EC002593

Approvals:

• Certifications: IFA, cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level: Low
• Operating Principle: Electromechanical
• Housing Material: Glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 278 g

Mechanical Properties:

• Mechanical Lifespan: min. 1,000,000 operations
• Locking Force: max. 1,300 N
• Positive Opening Travel: 11 mm
• Positive Opening Force: min. 17 N
• Dimensions (LxWxH): 30 x 90 x 84 mm

Electrical Properties:

• Operating Voltage: 24 VAC/DC
• Continuous Current: 10 A
• Switching Elements: 2 Normally Closed (NC) contacts
• Switching Principle: Slow-action, positively driven opener
• Load Capacity:
- AC-15: 230 VAC / 4 A
- DC-13: 24 VDC / 4 A


Environmental Conditions:

• Protection Rating: IP67
• Operating Temperature: -25 °C to +60 °C

Connection Technology:

• Cable Entry: 1 x M20 x 1.5
• Cable Cross-Section: 0.75 mm² to 1 mm² (flexible)

Included:

• Actuator not included
• Slot closure

Notes:

• Cutting-clamp technology allows wiring without ferrules.
• Manual release with M5 triangular key (optional accessory).
