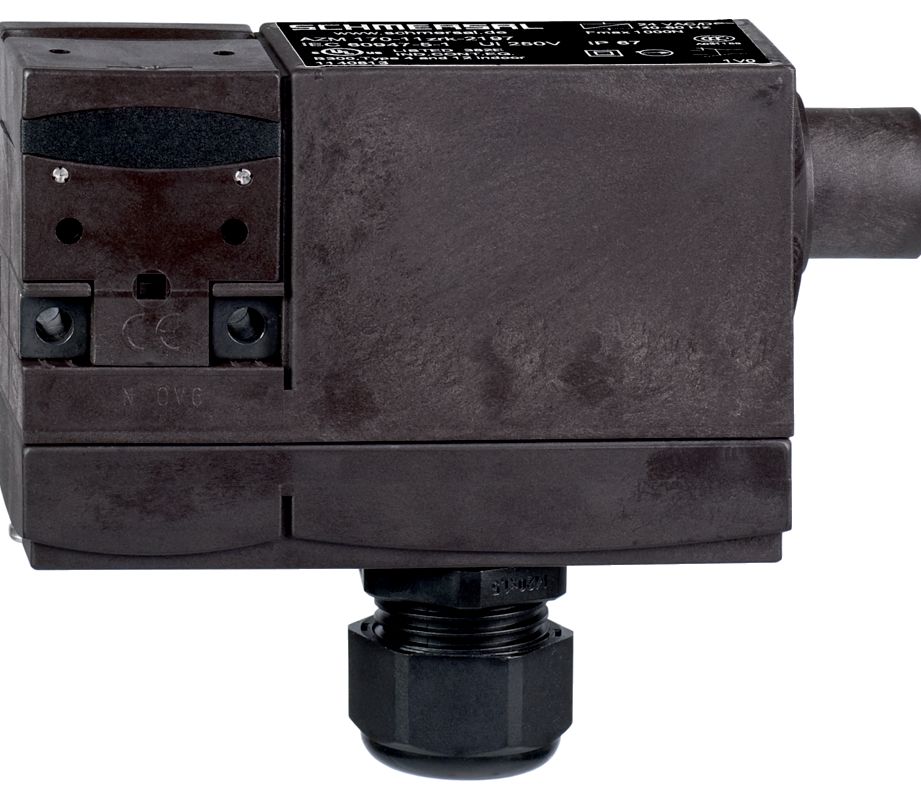

Schmersal AZM 170-02ZRK-2197 24VAC/DC safety locking device 101140818

The AZM 170-02ZRK-2197 24VAC/DC safety switch is an electromechanical safety switch designed for sliding, removable, and hinged safety guards. With a retention force of 1,000 N as per EN ISO 14119 and a manual auxiliary release, it provides secure and flexible solutions for machine applications. The cutting clamp technology ensures easy installation, while its robust glass-fiber-reinforced thermoplastic construction guarantees IP67 protection.

Technical Data:

Product Designation:

• AZM 170-02ZRK-2197 24VAC/DC

Article Number:

• 101140818

EAN:

• 4030661120065

eCl@ss Numbers:

• Version 12.0: 27-27-26-03
• Version 11.0: 27-27-26-03
• Version 9.0: 27-27-26-03

ETIM Numbers:

• Version 7.0: EC002593
• Version 6.0: EC002593

Approvals - Standards:

• Certificates: IFA, cULus, CCC
• Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1

General Data:

• Coding Level (EN ISO 14119): Low
• Operating Principle: Electromechanical
• Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
• Gross Weight: 285 g

Features:

• Rest Current Principle: Yes
• Auxiliary Release: Yes
• Number of Approach Directions: 2
• Number of Safety Contacts: 2

Safety Consideration:

• Performance Level: Up to c
• Category: 1
• B10D NC Contacts: 2,000,000 cycles
• B10D NO Contacts: 1,000,000 cycles
• Service Life: 20 years

Mechanical Data:

• Mechanical Lifetime: Minimum 1,000,000 cycles
• Retention Force FZh (EN ISO 14119): 1,000 N
• Maximum Retention Force Fmax: 1,300 N
• Latching Force: 30 N
• Positive Opening Distance: 11 mm
• Operating Speed (max.): 2 m/s
• Mounting: Screws (2x M5)

Mechanical Data - Connection Technology:

• Cable Entry: 1 x M20 x 1.5
• Connection Type: Cutting Clamp Technology
• Connection Cross-Section: 0.75 mm² - 1 mm² (flexible)

Mechanical Data - Dimensions:

• Sensor Length: 30 mm
• Sensor Width: 108 mm
• Sensor Height: 84 mm

Environmental Conditions:

• Protection Class: IP67
• Operating Temperature: -25 °C to +60 °C
• Storage and Transport Temperature: -25 °C to +85 °C

Electrical Data:

• Rated Control Supply Voltage: 24 VAC/DC
• Conditional Rated Short-Circuit Current: 1,000 A
• Electrical Power Consumption: Maximum 12 W
• Switching Element: 2 NC
• Switching Principle: Slow-action, positive-opening contacts

Electrical Data - Safety Contacts:

• Voltage, Utilization Category AC-15: 230 VAC
• Current, Utilization Category AC-15: 4 A
• Voltage, Utilization Category DC-13: 24 VDC
• Current, Utilization Category DC-13: 4 A

Other Data:

Applications: Sliding, removable, and hinged safety guards

Included in Delivery:

Actuator not included.

Slot cover for dust-tight sealing of unused openings.

Additional side auxiliary release (Triangle Key M3 included).

Type: AZM 170-02ZRK-2197 24VAC/DC
