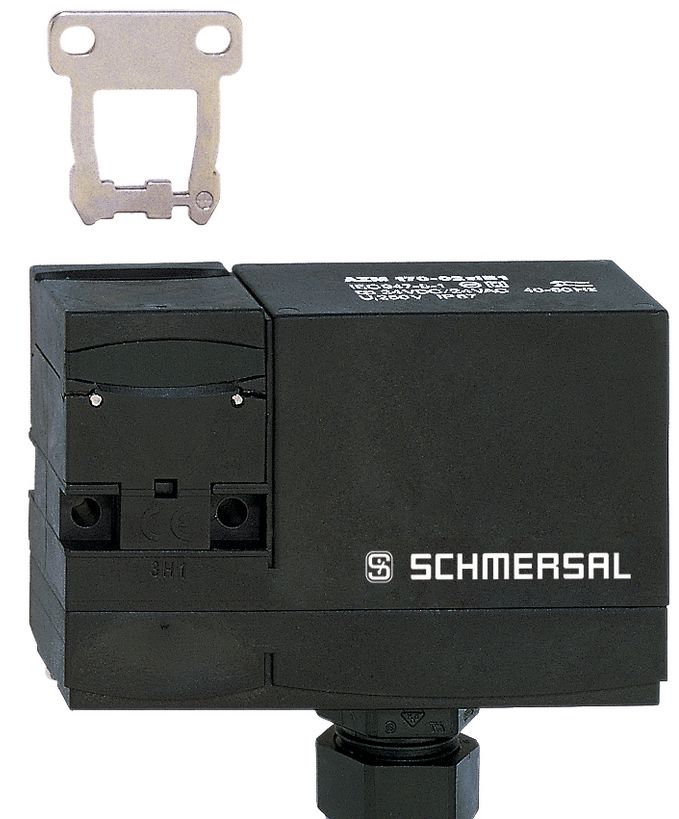

Schmersal AZM 170-02ZRIA B6L 24VAC/DC safety locking device 101140812
|
263,84 EUR |
|||||||||||
|
( 313,97 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216003 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101140812 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101140812:
The cutting clamp technology allows for easy installation, while its robust design with IP67 protection ensures safe operation even in challenging environments. The safety switch includes an integrated auxiliary release for manual unlocking in emergencies or during maintenance.
Technical Data:
Ordering Details:
- Product Type: AZM 170-02ZRIA-B6L 24VAC/DC
- Part Number: 101140812
- EAN: 4030661120003
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: BG-GS-ET-19, EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding: Individual Coding
- Coding Level: High
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber-reinforced thermoplastic, self-extinguishing
- Actuator Material: Stainless Steel
- Gross Weight: 295 g
Mechanical Data:
- Actuation Radius: Min. 50 mm
- Locking Force: 1,000 N (max. 1,300 N)
- Latching Force: 30 N
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Connection Type: Cutting Clamp Technology
- Dimensions (L x W x H): 30 mm x 90 mm x 84 mm
Electrical Data:
- Rated Control Supply Voltage: 24 VAC/DC
- Switching Element: 2 NC
- Switching Principle: Slow-action switching, forced-opening contacts
- Rated Insulation Voltage Ui: 250 VAC
- Electrical Power Consumption: Max. 12 W
- Maximum Switching Frequency: 1,000/h
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +60 °C
- Protection Class: II
Included in Delivery:
- Slot cover
- Actuator included
Notes:
- Cutting clamp technology allows easy installation without ferrules.
- Auxiliary unlocking for manual release with triangular key M5 (optional accessory).
Type: AZM 170-02ZRIA-B6L 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 170-02ZRIA B6L 24VAC/DC safety locking device 101140812?
The article Schmersal AZM 170-02ZRIA B6L 24VAC/DC safety locking device 101140812 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101140812 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 170-02ZRIA B6L 24VAC/DC safety locking device 101140812 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 170-02ZRIA B6L 24VAC/DC safety locking device 101140812 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Schmersal AZM 170-02ZRIA B6L 24VAC/DC safety locking device 101140812 we can offer you a price of 259,88 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
