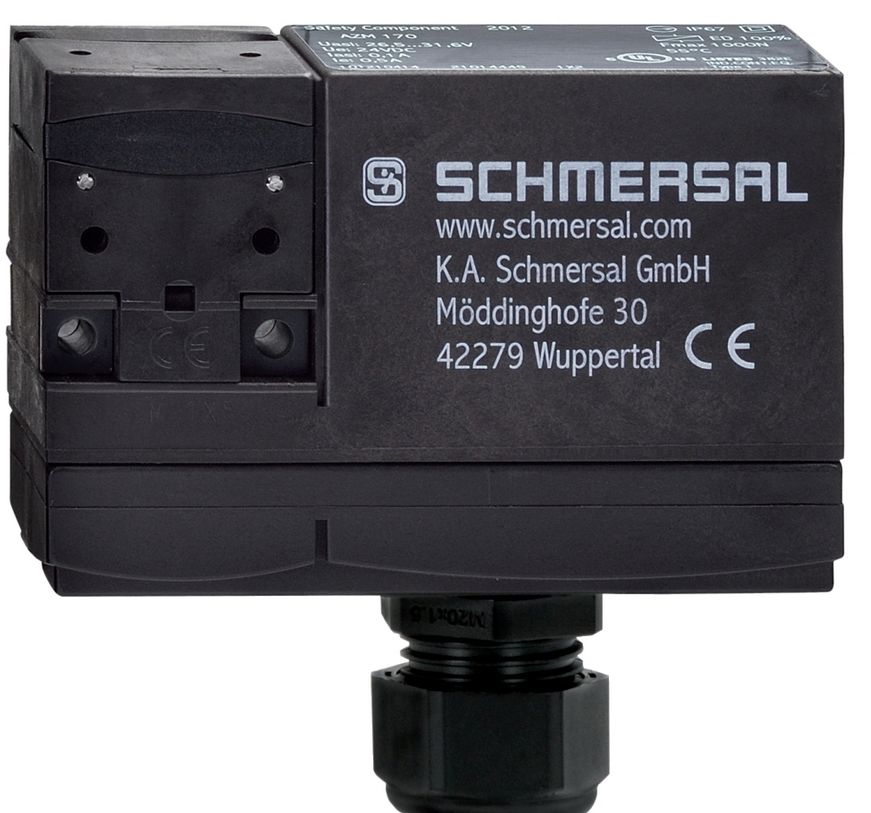

Schmersal 101140795 interlock, AZM170-02ZRK24VAC/DC 1140795
|
236,38 EUR |
|||||||||||
|
( 281,29 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 4 pieces | |||||||||||
| Lieske Part No.: | 336666 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101140795 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101140795:
Technical Data:
Product Designation:
- AZM 170-02ZRK 24VAC/DC
Article Number:
- 101140795
EAN:
- 4030661119830
eCl@ss Numbers:
- Version 12.0: 27-27-26-03
- Version 11.0: 27-27-26-03
- Version 9.0: 27-27-26-03
ETIM Numbers:
- Version 7.0: EC002593
- Version 6.0: EC002593
Approvals and Standards:
- Certifications: IFA, cULus, CCC
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
General Data:
- Coding Level: Low
- Operating Principle: Electromechanical
- Housing Material: Plastic, glass-fiber reinforced thermoplastic
- Gross Weight: 288 g
General Features:
- Power-to-lock principle: Yes
- Auxiliary release: Bottom, manual with triangular key M5 (available as accessory)
- Safety Contacts: 2
- Number of Approach Directions: 2
Safety Considerations:
- Performance Level (Single-Channel): Up to c (Category 1)
- Performance Level (Dual-Channel): Up to d (Category 3)
- B10D NC Contacts: 2,000,000 operations
- B10D NO Contacts: 1,000,000 operations (at 10% Ie and resistive load)
- Service Life: 20 years
Mechanical Data:
- Mechanical Lifespan: 1,000,000 operations
- Holding Force: 1,000 N (FZh as per EN ISO 14119), maximum 1,300 N
- Latching Force: 30 N
- Maximum Actuation Speed: 2 m/s
- Mounting: 2x M5 screws
Connection Technology:
- Cable Entry: 1 x M20 x 1.5
- Connection Type: IDC (Insulation Displacement Contact) technology
- Conductor Cross-Section: 0.75–1 mm²
Dimensions:
- Length: 30 mm
- Width: 90 mm
- Height: 84 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 °C to +60 °C
- Storage Temperature: -25 °C to +85 °C
Electrical Data:
- Operating Voltage: 24 VAC/DC
- Electrical Power Consumption: Max. 12 W
- Safety Contacts: 2 NC Contacts
- Voltage (AC-15): 230 VAC, Current: 4 A
- Voltage (DC-13): 24 VDC, Current: 2.5 A
Additional Information:
- Suitable for: Sliding, removable, or rotating protective devices
Included Items:
Notes:
Type: AZM170-02ZRK24VAC/DC
