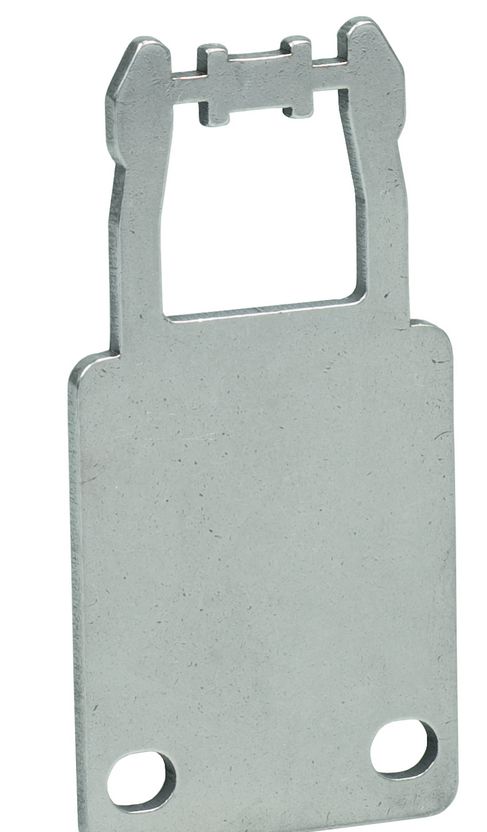

Schmersal AZ 17/170-B11 actuator 101139788
|
20,90 EUR |
|||||||||||
|
( 24,87 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 2 pieces | |||||||||||
| Lieske Part No.: | 1216080 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101139788 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101139788:
140 mm
Betätiger:
gerade
Hinweis (Allgemein):
Kleinster möglicher Betätigungsradius bei drehbaren Schutzeinrichtungen über die schmale Seite des Betätigers: 140 mm
Kleinster möglicher Betätigungsradius bei drehbaren Schutzeinrichtungen über die breite Seite des Betätigers: 200 mm
Drehpunkt des Scharniers und Oberkante des Sicherheitsschalters müssen zuzüglich 37,5 mm eine Ebene bilden
Product Description in English:
The AZ 17/170-B11 actuator from Schmersal is a robust and reliable solution for safely operating safety switches in industrial applications. Made of stainless steel, the actuator offers excellent corrosion resistance and a long service life.
The straight actuator provides flexible application options for both hinged and rotating safety guards. The minimum actuation radius is 140 mm via the narrow side and 200 mm via the wide side of the actuator, allowing precise adaptation to various setups.
An important installation note is that the hinge pivot point and the top edge of the safety switch must be aligned, with an additional clearance of 37.5 mm.
With a gross weight of only 28 g, the actuator is lightweight yet sturdy, making handling and installation easy.
Technical Data:
Product Type Designation:
AZ 17/170-B11
Article Number (Order Number):
101139788
EAN (European Article Number):
4030661282268
eCl@ss Numbers:
Version 12.0: 27-27-26-06
Version 11.0: 27-27-26-06
Version 9.0: 27-27-26-06
ETIM Numbers:
Version 7.0: EC001487
Version 6.0: EC001487
General Data:
Material of Actuator:
Stainless Steel
Gross Weight:
28 g
Mechanical Data:
Minimum Actuation Radius:
140 mm
Actuator Type:
Straight
Note (General):
Minimum possible actuation radius for rotating safety guards via the narrow side of the actuator: 140 mm
Minimum possible actuation radius for rotating safety guards via the wide side of the actuator: 200 mm
The pivot point of the hinge and the top edge of the safety switch must be aligned, with an additional clearance of 37.5 mm
Type: AZ 17/170-B11
The item price shown refers to 2 pieces Schmersal 101139788
Questions & answers
What is the delivery time of Schmersal AZ 17/170-B11 actuator 101139788?
The article Schmersal AZ 17/170-B11 actuator 101139788 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101139788 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZ 17/170-B11 actuator 101139788 always at the best possible price. We can give you a discount of 2% on Schmersal AZ 17/170-B11 actuator 101139788 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Schmersal AZ 17/170-B11 actuator 101139788 we can offer you a price of 20,59 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Schmersal AZ 17/170-B11 actuator 101139788 is offered by us in a sales unit of 2 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
