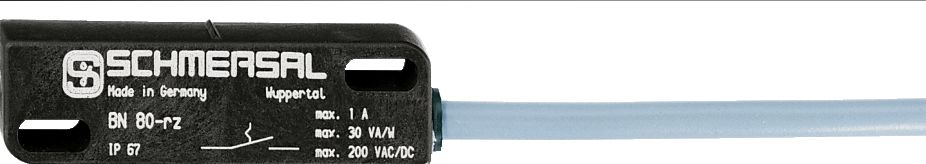

Schmersal BN 80-RZ magnetic switch 101139647
|
45,73 EUR |
|||||||||||
|
( 54,42 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311747 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101139647 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101139647:
Product Description in English:
The BN 80-RZ from Schmersal is a magnetic proximity switch with latching function, designed for industrial applications. Its glass-fiber reinforced thermoplastic housing ensures durability and reliability in demanding environments.
The BN 80-RZ is side-actuated and connected via cable. It has a minimum mechanical lifespan of 1 billion switching cycles, making it suitable for high-frequency applications. The switch supports maximum switching voltages of 200 VAC/DC with a maximum switching capacity of 10 VA.
The switching distance is up to 60 mm, depending on the actuator magnet used. The BN 80-RZ operates on a latching principle, ensuring that the switch remains in position until it is actuated again.
Important Note: The actuator is not included in the delivery. Recommended actuators include BP 10, BP 15 S, and BP 34 S.
Technical Data:
Product Type Designation:
BN 80-RZ
Article Number (Order Number):
101139647
EAN (European Article Number):
4030661282176
eCl@ss Numbers:
Version 12.0: 27-27-43-02
Version 11.0: 27-27-01-05
Version 9.0: 27-27-01-05
ETIM Numbers:
Version 7.0: EC002544
Version 6.0: EC002544
General Data:
Operating Principle:
Magnetic
Housing Design:
Cuboid
Housing Material:
Plastic, glass-fiber reinforced thermoplastic
Active Surface Material:
Plastic
Gross Weight:
24 g
Latching:
Yes
Number of Latching Contacts:
1
Mechanical Data:
Actuation Plane:
Side
Active Surface:
Side
Actuation Element:
Magnet
Minimum Mechanical Lifespan:
1 billion switching cycles
Switching Distances (Sn):
0 mm to 60 mm, depending on the actuator magnet
Examples:
BP 10 = 2 … 9 mm
BP 34 S = 20 … 50 mm
BP 15 S = 12 … 30 mm
Environmental Conditions:
Degree of Protection:
IP67
Ambient Temperature:
-25 °C to +75 °C
Shock Resistance:
15 g, sinusoidal vibration
The BN 80-RZ is a reliable and durable proximity switch, suitable for various industrial applications with high switching demands.
Type: BN 80-RZ
Questions & answers
What is the delivery time of Schmersal BN 80-RZ magnetic switch 101139647?
The article Schmersal BN 80-RZ magnetic switch 101139647 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101139647 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BN 80-RZ magnetic switch 101139647 always at the best possible price. We can give you a discount of 2% on Schmersal BN 80-RZ magnetic switch 101139647 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal BN 80-RZ magnetic switch 101139647 we can offer you a price of 45,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
