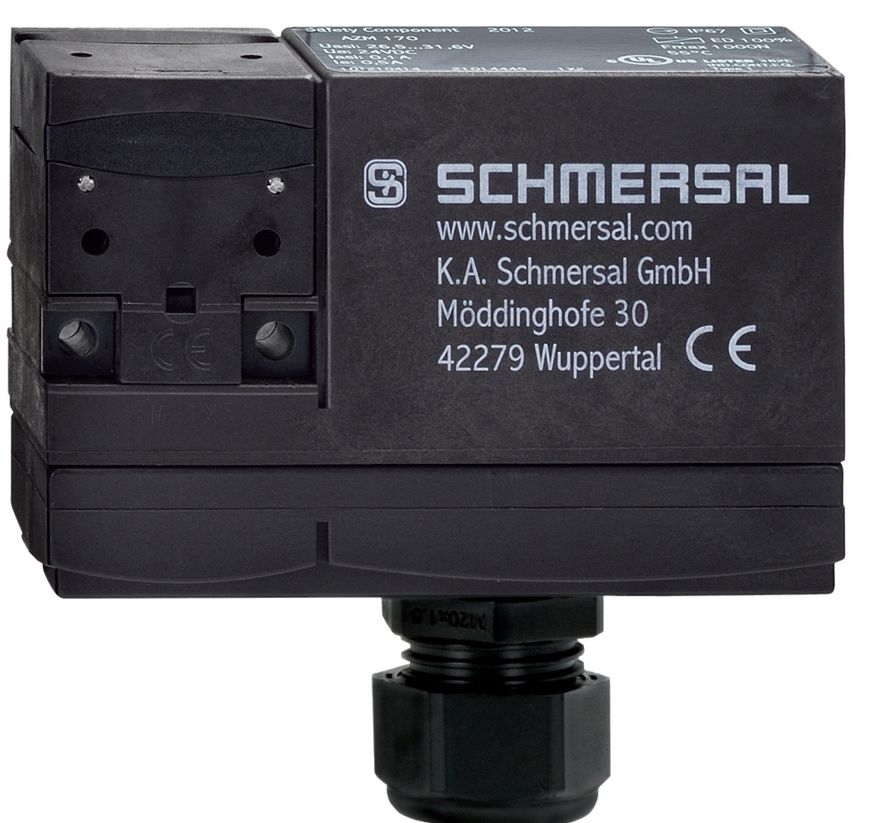

Schmersal AZM 170-02ZRKA 230VAC safety locking device 101136316
|
269,48 EUR |
|||||||||||
|
( 320,68 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1216084 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101136316 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101136316:
Technical Data:
Ordering Details:
- Product Type: AZM 170-02ZRKA 230VAC
- Part Number: 101136316
- EAN: 4030661056210
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: EN ISO 13849-1, EN ISO 14119, EN IEC 60947-5-1
- Coding Level per EN ISO 14119: Low
- Operating Principle: Electromechanical
- Housing Material: Glass-fiber reinforced thermoplastic, self-extinguishing
- Gross Weight: 278 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Holding Force per EN ISO 14119: 1,000 N
- Latching Force: 30 N
- Forced Opening Distance: 11 mm
- Actuation Speed: Max. 2 m/s
- Mounting: Screws (2x M5)
- Dimensions (L x W x H): 30 mm x 90 mm x 84 mm
Electrical Data:
- Rated Control Supply Voltage: 230 VAC
- Thermal Continuous Current: 6 A
- Voltage, Utilization Category AC-15: 230 VAC
- Current, Utilization Category AC-15: 4 A
- Voltage, Utilization Category DC-13: 24 VDC
- Current, Utilization Category DC-13: 4 A
- Electrical Power Consumption: Max. 12 W
- Switching Element: 2 NC contacts
- Switching Principle: Slow-action switching with forced opener
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +60 °C
- Protection Class: II
- Rated Insulation Voltage Ui: 250 VAC
- Rated Impulse Withstand Voltage Uimp: 4 kV
Applications:
- Sliding protective devices
- Removable protective devices
- Rotating protective devices
Scope of Delivery:
- Slot closure
- Actuator not included
Notes:
- The cutting-edge clamp connection technology enables flexible wiring without ferrules.
- Manual unlocking is possible with a triangular key M5 (available as an accessory).
Type: AZM 170-02ZRKA 230VAC
