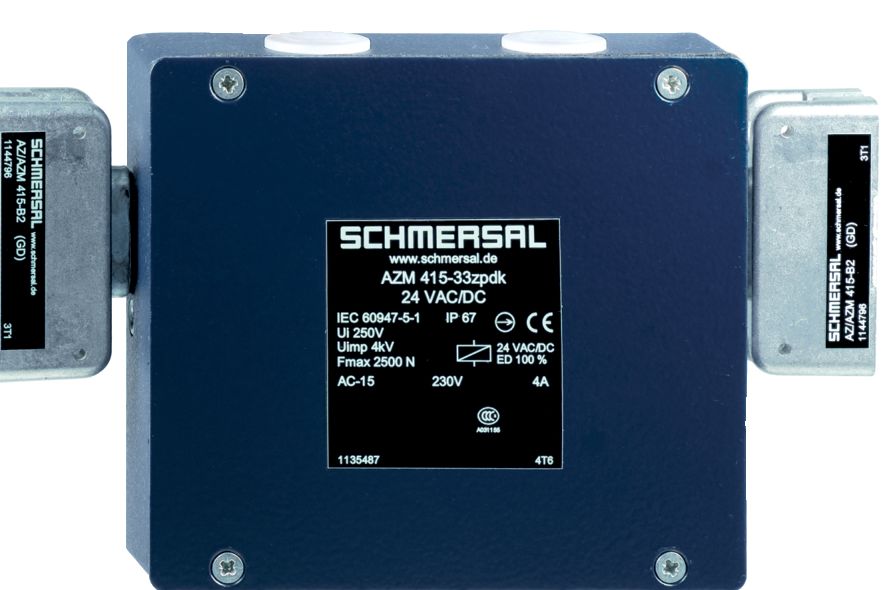

Schmersal AZM 415-33ZPDK 24VAC/DC safety locking device 101135487
|
545,95 EUR |
|
|
( 649,68 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1216085 |
|---|---|
| Mfg Part No: | 101135487 |
| Weight: | 1.23 kg |
Product information for Schmersal 101135487:
With a maximum holding force of 2,500 N per protective door and an IP67 protection rating, the AZM 415-33ZPDK is an ideal choice for industrial applications. The screw connection simplifies installation and wiring of flexible cables.
Technical Data:
Ordering Details:
- Product Type: AZM 415-33ZPDK 24VAC/DC
- Part Number: 101135487
- EAN: 4030661280226
- eCl@ss Number: 27-27-26-03
- ETIM Number: EC002593
General Data:
- Standards: BG-GS-ET-19, EN IEC 60947-5-1
- Operating Principle: Electromechanical
- Housing Material: Aluminum
- Housing Coating Material: Painted
- Gross Weight: 1.235 g
Mechanical Data:
- Mechanical Lifespan: Min. 1,000,000 switching cycles
- Holding Force per EN ISO 14119: 2,500 N (per protective door)
- Latching Force: 150 N (min), 400 N (max)
- Forced Opening Distance: 4.5 mm
- Actuation Speed: Max. 0.2 m/s
- Connection Type: Screw connection M20 x 1.5
- Dimensions (L x W x H): 46.5 mm x 141 mm x 125 mm
Electrical Data:
- Thermal Continuous Current: 6 A
- Rated Control Supply Voltage: 24 VAC/DC
- Voltage, Utilization Category AC-15: 230 VAC
- Current, Utilization Category AC-15: 4 A
- Voltage, Utilization Category DC-13: 24 VDC
- Current, Utilization Category DC-13: 1 A
- Electrical Power Consumption: Max. 10 W
- Switching Element: NO, NC
- Switching Principle: Slow-action switching
Environmental Conditions:
- Protection Class: IP67
- Ambient Temperature: -25 °C to +50 °C
- Rated Insulation Voltage Ui: 250 VAC
- Rated Impulse Withstand Voltage Uimp: 4 kV
Applications:
- Sliding protective devices
- Rotating protective devices
Type: AZM 415-33ZPDK 24VAC/DC
Questions & answers
What is the delivery time of Schmersal AZM 415-33ZPDK 24VAC/DC safety locking device 101135487?
The article Schmersal AZM 415-33ZPDK 24VAC/DC safety locking device 101135487 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101135487 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal AZM 415-33ZPDK 24VAC/DC safety locking device 101135487 always at the best possible price. We can give you a discount of 2% on Schmersal AZM 415-33ZPDK 24VAC/DC safety locking device 101135487 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
