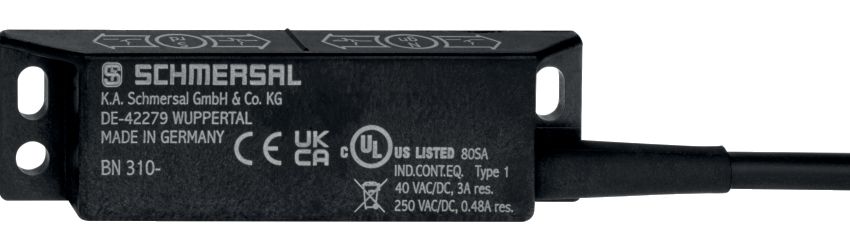

Schmersal 101133844 BN 310-01Z magnetic switch content_copy

The BN 310-01Z from Schmersal is a magnetic proximity switch with a normally closed (NC) contact, specifically designed for use in elevator applications and other safety-critical environments. With a durable glass-fiber reinforced thermoplastic housing and a minimum mechanical lifespan of 1 billion switching cycles, the switch ensures reliable performance in industrial settings.

The BN 310-01Z is side-actuated and mounted using elongated holes for flexible installation. The switching distance is up to 50 mm, depending on the actuator magnet used.

The proximity switch supports switching voltages up to 250 VAC/DC and a maximum switching power of 120 W. It comes with a 1-meter cable with a wire cross-section of 0.75 mm².

Important Note: The actuator is not included in the delivery. Recommended actuators include BP 10, BP 15, or BE 20.
Technical Data:

Product Type Designation:

BN 310-01Z

Article Number (Order Number):

101133844

EAN (European Article Number):

4030661059433

eCl@ss Numbers:

Version 12.0: 27-27-43-02
Version 11.0: 27-27-01-05
Version 9.0: 27-27-01-05

ETIM Numbers:

Version 7.0: EC002544
Version 6.0: EC002544

Approvals - Regulations:

Certificates:

cULus

General Data:

Operating Principle:

Magnetic

Housing Design:

Rectangular

Housing Material:

Plastic, glass-fiber reinforced thermoplastic

Gross Weight:

75 g

Suitable for Elevators:

Yes

Number of NC Contacts:

1

Mechanical Data:

Actuation Plane:

Side

Actuation Element:

Magnet

Minimum Mechanical Lifespan:

1 billion switching cycles

Maximum Actuation Speed:

18 m/s

Mounting:

Elongated holes

Environmental Conditions:

Degree of Protection:

IP67

Ambient Temperature:

-25 °C to +75 °C

Shock Resistance:

30 g / 11 ms
