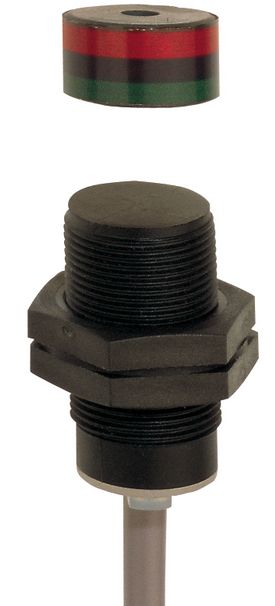

Schmersal BNS 180-02Z safety sensor 101133009
|
42,80 EUR |
|
|
( 50,93 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1216190 |
|---|---|
| Mfg Part No: | 101133009 |
| Weight: | 0 kg |
Product information for Schmersal 101133009:
Product description in English:
The magnetic safety sensor BNS 180-02Z is an ideal solution for monitoring protective devices in safety-critical applications. Made of fiberglass-reinforced thermoplastic, the robust housing provides high mechanical stability and is protected against dust and water ingress with an IP67 rating.
The sensor operates on a magnetic principle and features two normally closed (NC) contacts. With a lifespan of up to 25,000,000 switching cycles (B10D) and a service life of 20 years, it meets high safety standards according to EN ISO 13849-1. The BNS 180-02Z can be installed flush with the surface, simplifying installation.
The connection cable is 1 meter long and has a PVC sheath. The secured switching distances are up to 20 mm for ON" (Sao) and up to 32 mm for "OFF (Sar), depending on the actuator used.
Technical specifications:
Ordering information:
- Product designation: BNS 180-02Z
- Article number: 101133009
- EAN: 4030661279640
- eCl@ss number: 27-27-44-01
- ETIM number: EC002544
Approvals and standards:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
Mechanical specifications:
- Operating principle: Magnetic
- Dimensions: ISO thread M18, Length 36 mm
- Protection class: IP67
- Movement direction: Frontal to the active surface
- Switching distances: - Sao: 10 mm / 20 mm
- Lifespan: 25,000,000 switching cycles (B10D)
- Connection: Cable, 1 m length, PVC sheath, cross-section 0.25 mm² (23 AWG)
- Sar: 22 mm / 32 mm
Electrical specifications:
- Switching voltage: max. 100 VAC / 100 VDC
- Switching current: max. 0.25 A
- Switching power: max. 3 W
- Switching elements: 2 normally closed (NC)
- Switching frequency: max. 5 Hz
Environmental conditions:
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10–55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Delivery:
- The actuator is not included in the scope of delivery.
Accessories:
- Recommended actuators: BP 6, BP 8, BP 10, BP 15 SS
- Recommended safety control units: SRB-E-301ST, SRB-E-201LC
Notes:
- The sensor must be installed concealed according to EN ISO 14119, preventing actuation with a magnet.
- Contact symbols are shown with the protective device in a closed state.
Type: BNS 180-02Z
Questions & answers
What is the delivery time of Schmersal BNS 180-02Z safety sensor 101133009?
The article Schmersal BNS 180-02Z safety sensor 101133009 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101133009 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 180-02Z safety sensor 101133009 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 180-02Z safety sensor 101133009 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
