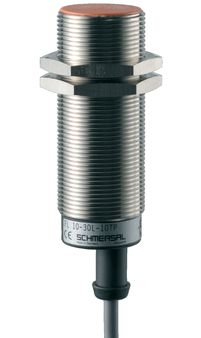

Schmersal IFL 10-30L-10TP Indian proximity switch 3L DC cylinder wt. 101126987
|
103,92 EUR |
|||||||||||
|
( 123,66 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311752 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101126987 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101126987:
Product Description in English:
The IFL 10-30L-10TP is a high-quality inductive proximity sensor with a cylindrical design. Its robust brass housing, coated with nickel, makes it suitable for demanding industrial applications. With a nominal sensing range of 10 mm and integrated protection against overload, short circuits, and reverse polarity, this sensor ensures reliable and long-lasting performance. The integrated yellow LED display simplifies status monitoring during operation.
Technical Data:
Product Type Designation:
- IFL 10-30L-10TP
Order Number:
- 101126987
EAN:
- 4030661050751
Approvals and Standards:
- Certifications: CCC
- Standards: - DIN VDE 0660-208
- Housing Design: Cylinder, Threaded
- Installation Conditions: Flush
- Material: - Housing: Brass, Nickel-Plated
- Gross Weight: 200 g
- Integrated Status Display: Yes
- Cable Gland: Yes
- Number of Conductors: 3
- EN IEC 60947-5-2
General Data:
- Active Face: Plastic
- Nut: Brass
Mechanical Data:
- Maximum Nut Tightening Torque: 30 Nm
Sensing Distances According to EN IEC 60947-5-3:
- Nominal Sensing Range Sn: 10 mm
Connection Technology:
- Cable Length: 2 m
- Connection Type: Cable
- Conductor Cross-Section: 0.34 mm²
- Cable Jacket Material: PVC
Dimensions:
- ISO Thread: M30
- Wrench Size: 36 SW
- Sensor Length: 100 mm
Environmental Conditions:
- Protection Class: IP67
- Operating Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Safety Class: 0
Electrical Data:
- Voltage Type: DC
- Typical Idle Current I0: 3.5 mA
- Rated Operating Voltage: 10 ... 30 VDC
- Rated Operating Current: 200 mA
- Switching Element: Normally Open (NO)
- Integrated Protection Circuits: - Inductive Protection
- Switching Frequency, Approx.: 350 Hz
- Reverse Polarity Protection
- Overload Protection
- Short Circuit Protection
Digital Outputs:
- Maximum Voltage Drop Ud: 1.2 V
- Current at Voltage Drop Ud: 0.2 A
- Type of Switching Elements: p-switching
Status Indicator:
- Note: Yellow LED
Notes:
- Instead of nuts, a clamping bracket can also be supplied.
Type: IFL 10-30L-10TP
Questions & answers
What is the delivery time of Schmersal IFL 10-30L-10TP Indian proximity switch 3L DC cylinder wt. 101126987?
The article Schmersal IFL 10-30L-10TP Indian proximity switch 3L DC cylinder wt. 101126987 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101126987 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal IFL 10-30L-10TP Indian proximity switch 3L DC cylinder wt. 101126987 always at the best possible price. We can give you a discount of 2% on Schmersal IFL 10-30L-10TP Indian proximity switch 3L DC cylinder wt. 101126987 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal IFL 10-30L-10TP Indian proximity switch 3L DC cylinder wt. 101126987 we can offer you a price of 102,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
