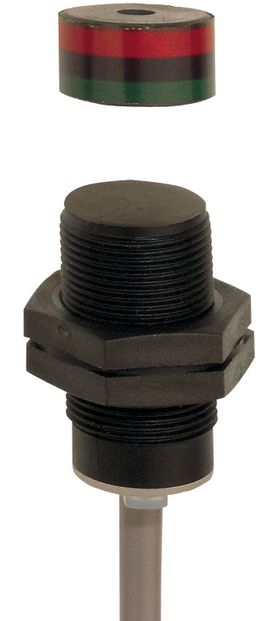

Schmersal BNS 180-11Z safety sensor 101120933
|
42,80 EUR |
|||||||||||
|
( 50,93 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1231347 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101120933 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101120933:
The sensor operates on a magnetic principle and can be installed flush with the surface. With a maximum lifespan of 25,000,000 switching cycles (B10D) and a service life of 20 years, it meets high safety standards according to EN ISO 13849-1. The sensor features one normally closed (NC) and one normally open (NO) contact, allowing for flexible integration into safety circuits.
The connection cable is 1 meter long, has a cross-section of 0.25 mm² (23 AWG), and is made of PVC. The secured switching distances reach up to 20 mm (Sao) for ON and up to 32 mm (Sar) for OFF, depending on the actuator.
Technical specifications:
Ordering information:
- Product designation: BNS 180-11Z
- Article number: 101120933
- EAN: 4030661049359
- eCl@ss number: 27-27-44-01
- ETIM number: EC002544
Approvals and standards:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
Mechanical specifications:
- Operating principle: Magnetic
- Dimensions: ISO thread M18, Length 36 mm
- Protection class: IP67
- Movement direction: Frontal to the active surface
- Switching distances: - Sao: 10 mm / 20 mm
- Lifespan: 25,000,000 switching cycles (B10D)
- Connection: Cable, 1 m length, PVC sheath, cross-section 0.25 mm² (23 AWG)
- Sar: 22 mm / 32 mm
Electrical specifications:
- Switching voltage: max. 100 VAC / 100 VDC
- Switching current: max. 0.25 A
- Switching power: max. 3 W
- Switching elements: 1 normally open (NO), 1 normally closed (NC)
- Switching frequency: max. 5 Hz
Environmental conditions:
- Operating temperature: -25 °C to +70 °C
- Vibration resistance: 10–55 Hz, amplitude 1 mm
- Shock resistance: 30 g / 11 ms
Delivery:
- The actuator is not included in the scope of delivery.
Accessories:
- Recommended actuators: BP 6, BP 8, BP 10, BP 15 SS
- Recommended safety control units: SRB-E-301ST, SRB-E-201LC
Note:
- The sensor must be installed concealed according to EN ISO 14119, preventing actuation with a magnet.
Type: BNS 180-11Z
Questions & answers
What is the delivery time of Schmersal BNS 180-11Z safety sensor 101120933?
The article Schmersal BNS 180-11Z safety sensor 101120933 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101120933 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal BNS 180-11Z safety sensor 101120933 always at the best possible price. We can give you a discount of 2% on Schmersal BNS 180-11Z safety sensor 101120933 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Schmersal BNS 180-11Z safety sensor 101120933 we can offer you a price of 42,16 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
