Schmersal BN 85-5-2031 magnetic switch 101118378

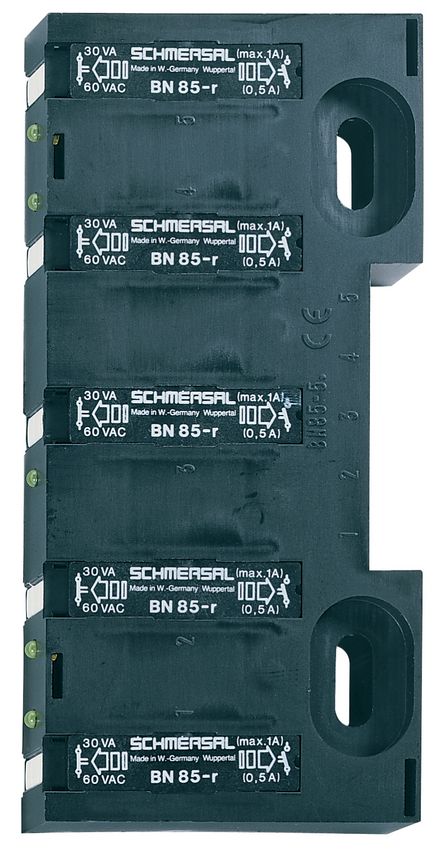

Magnetic Switch BN 85-5-2031

The magnetic switch BN 85-5-2031 from Schmersal is a reliable switching element based on a magnetic operating principle. Thanks to its robust construction made of glass fiber-reinforced thermoplastic, this switch is particularly suited for elevator technology applications. With a mechanical lifespan of at least 1 billion switching cycles, the BN 85-5-2031 is ideal for use in demanding, long-term installations.

The switch features a latching function and can be equipped with up to five latching contacts. The actuating magnet works on the front-facing plane, triggering the switching operation. The BN 85-5-2031 has a variable switching distance of 1 to 14 mm, which can be affected by the arrangement and influence of ferromagnetic materials.

The electrical connection is made via a 10-pin plug connector, allowing for easy integration into existing systems. The switch supports switching voltages from 12 to 60 VDC with a maximum switching current of 1 A and a maximum switching power of 30 W.

The BN 85-5-2031 has a status indicator and is particularly suitable for elevator technology applications. Please note that the BP 7 actuator is sold separately and is not included in the delivery scope.

### Technical Data:

Product type designation:

• BN 85-5-2031

Article number:

• 101118378

EAN:

• 4030661050058

Operating principle:

• Magnetic

Housing:

• Shape: Rectangular
• Material: Plastic, glass fiber-reinforced thermoplastic
• Protection rating: IP30

General Features:

• Latching: Yes
• Suitable for elevators: Yes
• Integrated indicator: Status indicator
• Minimum number of latching contacts: 1
• Maximum number of latching contacts: 5

Mechanical Data:

• Actuation plane: Front-facing
• Actuating element: Magnet
• Mechanical lifespan: Minimum 1,000,000,000 switching cycles
• Mounting: Housing with elongated holes

Switching Distances According to EN IEC 60947-5-3:

• Switching distance Sn: 1 mm … 14 mm
• Note: Switching distances apply to individually mounted devices without ferromagnetic influence.

Connection Technology:

• Connection type: Plug connector, 10-pin

Dimensions:

• Length: 140 mm
• Width: 65 mm
• Height: 20 mm

Environmental Conditions:

• Protection rating: IP30
• Operating temperature: -10 ... +75 °C
• Shock resistance: 60 g, sinusoidal vibration

Electrical Data:

• Minimum switching voltage: 12 VDC
• Maximum switching voltage: 60 VDC
• Maximum switching current: 1 A
• Maximum switching power: 30 W
• Switching element: Latching

Digital Outputs:

• Type of switching elements: Reed contact

Scope of Delivery:

• The actuator is not included in the delivery.

Accessories:

• Recommended actuator: BP 7
• Recommended actuator for elevator technology: BP 7

Notes:

The normally open (NO) or normally closed (NC) function depends on the actuation direction, the actuator magnet, and the magnet's polarity.

Type: BN 85-5-2031
