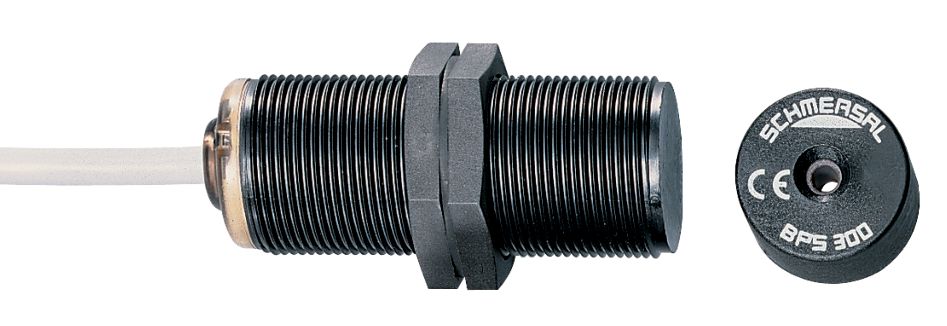

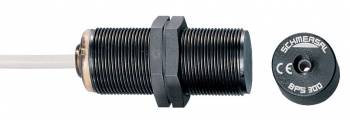

Schmersal 101110514 BNS 300-01zG, safety sensor
|
126,98 EUR |
|||||||||||
|
( 151,11 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 198720 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101110514 | ||||||||||
| UPC/EAN: | 4030661048895 | ||||||||||
| Weight: | 0.11 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101110514:
The sensor is equipped with one Normally Closed (NC) contact and supports a secure switching distance of 5 mm (ON") and 15 mm ("OFF). With a mechanical lifespan of 20 million operations and an IP67 protection rating, the BNS 300-01ZG is built for demanding environments.
Electrically, the sensor operates at 24 VDC and provides a maximum switching power of 750 W. It has a maximum switching frequency of 5 Hz and a response time of up to 50 ms. The connection is made via a 1-meter PVC-sheathed cable with a conductor cross-section of 0.75 mm².
Note: The actuator is not included in the delivery. Suitable actuators and safety control units are available separately.
Technical Data:
Ordering Details:
- Product Type: BNS 300-01ZG
- Part Number: 101110514
- EAN: 4030661048895
- eCl@ss Number: 27-27-44-01
- ETIM Number: EC002544
Approvals:
- Certifications: cULus
- Standards: BG-GS-ET-14, EN IEC 60947-5-3
General Data:
- Operating Principle: Magnetic
- Coding Level: Low
- Housing Material: Glass-fiber-reinforced thermoplastic
- Risk Time: max. 50 ms
- Gross Weight: 110 g
Mechanical Properties:
- Actuation Element: Magnet
- Motion Direction: Frontal to active area
- Switching Distances: - Sao (ON): 5 mm
- Dimensions (LxDiameter): 78 mm x M30
- Sar (OFF): 15 mm
Electrical Properties:
- Operating Voltage: 24 VDC
- Max. Switching Current: 3 A
- Max. Switching Power: 750 W
- Max. Switching Frequency: 5 Hz
- Switching Element: 1 Normally Closed (NC) contact
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -25 °C to +55 °C
- Vibration Resistance: 10–55 Hz, Amplitude 1 mm
Included:
- 2 nuts M30 x 1.5
- Actuator not included
Accessories:
- Recommended Actuators: BPS 300, BPS 303, BPS 303 SS
- Recommended Safety Control Units: SRB-E-301ST, SRB-E-201LC
Notes:
- LED lights up when the safety door is closed.
- Contact symbols are displayed with the safety guard closed.
Type: BNS 300-01zG
Questions & answers
What is the delivery time of Schmersal 101110514 BNS 300-01zG, safety sensor?
The article Schmersal 101110514 BNS 300-01zG, safety sensor is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101110514 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal 101110514 BNS 300-01zG, safety sensor always at the best possible price. We can give you a discount of 2% on Schmersal 101110514 BNS 300-01zG, safety sensor if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal 101110514 BNS 300-01zG, safety sensor we can offer you a price of 125,08 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
