Schmersal IFL 4B-12-10STPK1 Indian proximity switch 3L DC cylinder weight 101106015

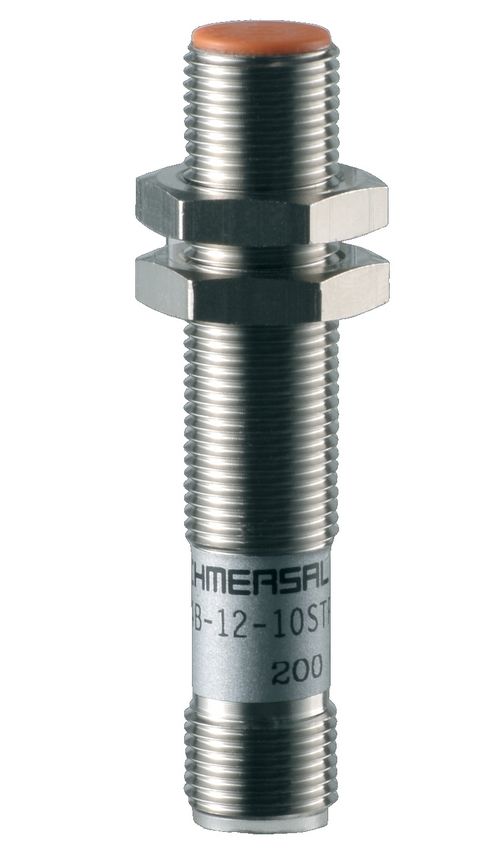

The IFL 4B-12-10STPK1 is a compact cylindrical proximity switch with an M12 thread, designed for precise object detection in industrial environments. Its robust nickel-plated brass housing and IP67 protection rating ensure reliable performance even in challenging conditions. Featuring a p-switching output and a yellow status LED for state indication, this sensor offers a high switching frequency and comprehensive protection features.

Technical Data:

Product Designation:

• IFL 4B-12-10STPK1

Article Number:

• 101106015

EAN:

• 4030661048482

eCl@ss Numbers:

• Version 12.0: 27-27-40-01
• Version 11.0: 27-27-01-01
• Version 9.0: 27-27-01-01

ETIM Numbers:

• Version 7.0: EC002714
• Version 6.0: EC002714

Approvals - Regulations:

• Certificates: CCC
• Standards: DIN VDE 0660-208, EN IEC 60947-5-2

General Data:

• Housing Design: Cylinder, threaded
• Mounting Conditions: Partially flush-mountable
• Note (Mounting Conditions):
- Steel: x ≥ 2.4 mm
- Other metals: x ≥ 1.2 mm

• Housing Material: Brass
• Housing Coating Material: Nickel-plated
• Active Surface Material: Plastic
• Nut Material: Brass, nickel-plated
• Gross Weight: 34 g

Features:

• Integrated Indicator, Status: Yes
• Number of Wires: 3

Mechanical Data:

• Maximum Nut Tightening Torque: 15 Nm
• Note (Nut Tightening Torque): Max. 500 Ncm in the core shell area

Switching Distances (EN IEC 60947-5-3):

• Nominal Switching Distance Sn: 4 mm

Connection Technology:

• Connection Type: M12 Connector

Dimensions:

• Sensor Thread: M12
• Wrench Size: 17 SW
• Sensor Length: 61 mm

Environmental Conditions:

• Protection Class: IP67
• Ambient Temperature: -25 ... +70 °C
• Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
• Shock Resistance: 30 g / 11 ms
• Protection Class: 0

Electrical Data:

• Voltage Type: DC
• No-Load Current I0, Typical: 0.5 mA
• Rated Operating Voltage: 5 ... 40 VDC
• Rated Operating Current: 200 mA
• Switching Element: Normally Open (NO)
• Integrated Protective Circuit:
- Induction Protection
- Polarity Reversal Protection
- Overload Protection
- Short-Circuit Protection (pulsed)

• Switching Frequency, Approx.: 600 Hz

Digital Outputs:

• Voltage Drop Ud, Max.: 1.3 V
• Current at Voltage Drop Ud: 0.2 A
• Switching Element Design: p-switching

Status Indicator:

Note (Integrated Indicator, Status): Yellow LED

Note:

Instead of nuts, a clamping bracket can also be supplied.

Type: IFL 4B-12-10STPK1
