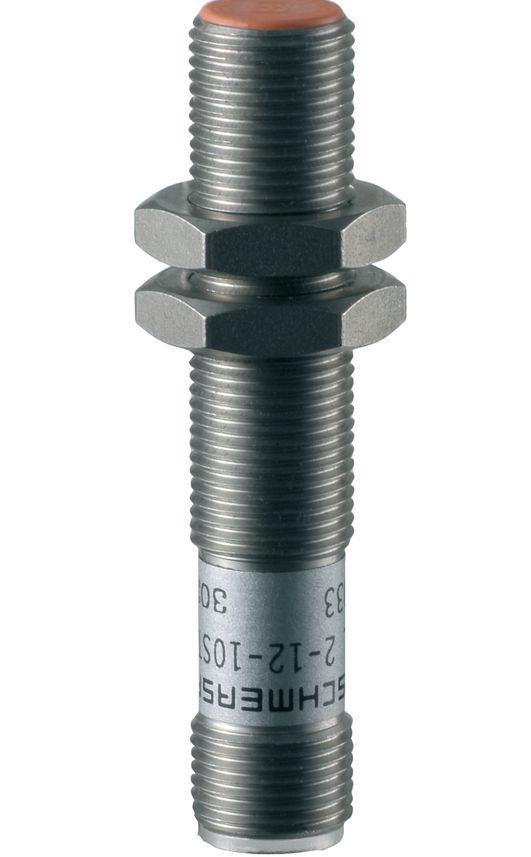

Schmersal IFL 2-12-10STN Indian proximity switch 3L DC cylinder wt. 101101328
|
85,42 EUR |
|||||||||||
|
( 101,65 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312604 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101101328 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101101328:
Product Description in English:
The inductive sensor IFL 2-12-10STN is a high-performance proximity switch designed for flush installation conditions. Its nickel-plated brass housing ensures durability and protection in demanding environments. Featuring a reliable yellow LED status indicator and a nominal sensing distance of 2 mm, the sensor is ideal for precise switching applications. The integrated protective circuit ensures safety against polarity reversal, overload, and short circuits.
Technical Data:
Product Type Designation:
- IFL 2-12-10STN
Order Number:
- 101101328
EAN:
- 4030661008899
Approvals and Standards:
- Certificates: - CCC
- Standards: - DIN VDE 0660-208
- Housing Design: Cylinder, Threaded
- Installation Conditions: Flush
- Materials: - Housing: Brass, Nickel-Plated
- Gross Weight: 33 g
- EN IEC 60947-5-2
General Data:
- Active Surface: Plastic
- Nut: Brass, Nickel-Plated
Features:
- Integrated Status Indicator: Yellow LED
- Number of Wires: 3
Mechanical Data:
- Max. Tightening Torque for Nuts: 15 Nm
- Note: Max. 500 Ncm in the shell core area
Sensing Distances:
- Nominal Sensing Distance Sn: 2 mm
Connection Technology:
- Connection Type: M12 Connector
Dimensions:
- ISO Thread: M12
- Wrench Size: 17 SW
- Length: 61 mm
Environmental Conditions:
- Protection Rating: IP67
- Operating Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
Electrical Data:
- Voltage Type: DC
- Idle Current I0, Typical: 3 mA
- Operating Voltage: 10 ... 30 VDC
- Operating Current: 200 mA
- Switching Element: Normally Open (NO)
- Protective Circuits: - Induction Protection
- Switching Frequency: Approx. 800 Hz
- Polarity Reversal Protection
- Overload Protection
- Short Circuit Protection
Digital Outputs:
- Voltage Drop Ud, Max: 1.2 V
- Current at Ud: 0.2 A
- Switching Elements: NPN
Notes:
- Instead of nuts, a clamping bracket can also be supplied.
Type: IFL 2-12-10STN
Questions & answers
What is the delivery time of Schmersal IFL 2-12-10STN Indian proximity switch 3L DC cylinder wt. 101101328?
The article Schmersal IFL 2-12-10STN Indian proximity switch 3L DC cylinder wt. 101101328 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101101328 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal IFL 2-12-10STN Indian proximity switch 3L DC cylinder wt. 101101328 always at the best possible price. We can give you a discount of 2% on Schmersal IFL 2-12-10STN Indian proximity switch 3L DC cylinder wt. 101101328 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal IFL 2-12-10STN Indian proximity switch 3L DC cylinder wt. 101101328 we can offer you a price of 84,14 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
