Schmersal IFL 4-12M-10STP Indian proximity switch 3L DC cylinder wt. 101086912
|
72,92 EUR |
|||||||||||
|
( 86,77 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1312613 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101086912 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101086912:
Product Description in English:

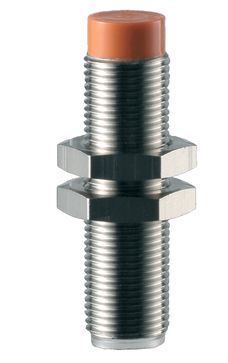

The IFL 4-12M-10STP is a compact and reliable inductive sensor with a cylindrical design and an M12 thread. Its nickel-plated brass housing ensures durability and high resistance to environmental factors. The sensor features a normally open (NO) contact and provides IP67 protection, making it ideal for industrial applications. With an integrated status indicator (yellow LED) and a switching frequency of 500 Hz, it is perfectly suited for precise and fast switching operations.
Technical Data:
Product Type Designation:
- IFL 4-12M-10STP
Order Number:
- 101086912
EAN:
- 4030661018089
Approvals and Standards:
- Standards: - DIN VDE 0660-208
- Housing Design: Cylinder, Thread
- Installation Conditions (Mechanical): Non-flush
- Housing Material: Nickel-plated Brass
- Material of Active Surfaces: Plastic
- Nut Material: Nickel-plated Brass
- Gross Weight: 30 g
- EN IEC 60947-5-2
General Data:
Features:
- Integrated Status Indicator: Yes (Yellow LED)
- Number of Connection Wires: 3
Mechanical Data:
- Maximum Tightening Torque of Nuts: 15 Nm
- Note: Maximum 500 Ncm in the shell core area
Switching Distances According to EN IEC 60947-5-3:
- Rated Switching Distance Sn: 4 mm
Connection Technology:
- Connection Type: Connector M12
Dimensions:
- ISO Thread: M12
- Wrench Size: 17 SW
- Length: 45.6 mm
Environmental Conditions:
- Protection Rating: IP67
- Ambient Temperature: -25 ... +70 °C
- Vibration Resistance: 10 … 55 Hz, Amplitude 1 mm
- Shock Resistance: 30 g / 11 ms
- Protection Class: 0
Electrical Data:
- Voltage Range: DC
- Idle Current I0, Typical: 3 mA
- Operating Voltage: 10 ... 30 VDC
- Operating Current: 200 mA
- Switching Element: Normally Open (NO)
- Protective Circuitry: - Induction Protection
- Switching Frequency: 500 Hz
- Reverse Polarity Protection
- Overload Protection
- Short-Circuit Protection
Digital Outputs:
- Maximum Voltage Drop Ud: 1.2 V
- Current at Ud: 0.2 A
- Switching Element Configuration: P-switching
Notes:
- The yellow LED indicates the sensor's status.
Type: IFL 4-12M-10STP
