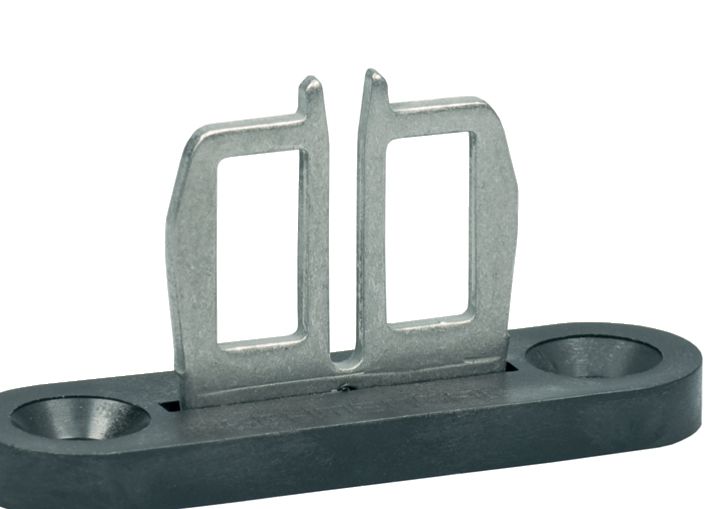

Schmersal 101083036 AZ 15/16-B1 actuator

Your rating:
Average rating
product review for Schmersal 101083036 AZ 15/16-B1 actuator
( 4.5 / 5 ) 44 ratings
Schmersal 101083036
This image may differ from the desired article.
-13% 3,70 EUR 4,27 EUR
( 4,40 EUR incl. VAT )
≈ £3.10  |  ≈ $4.07
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Schmersal 101083036 AZ 15/16-B1 actuator
Lieske Part No.:480002
Mfg Part No: 101083036
UPC/EAN: 4030661070001
Weight:0.123 kg
Type:AZ 15/16-B1

Product information for Schmersal 101083036:

The AZ 15/16-B1 actuator from Schmersal is a mechanical actuator specifically designed for use with safety switches of the AZ 15 and AZ 16 series. It serves as a mechanical activator that triggers the switch by movement of a protective device, such as a door, flap, or hood. The construction from stainless steel (V2A) ensures high robustness and corrosion resistance, making it suitable for use in industrial environments. The actuator is rigid and straight, ensuring precise and reliable mechanical transmission of movement.

Applications

The actuator is intended for rotating protective devices where mechanical actuation of the safety switch is required. Typical applications are found in the machine construction industry, particularly on movable protective covers that must activate the safety switch upon opening. The minimum actuation movement is 160 mm, enabling precise and defined triggering. This is particularly important to ensure that the switch is only activated with sufficient movement, thereby increasing safety.

Functions and Equipment in Detail

The actuator features a low coding level according to the standard EN ISO 14119. This standard regulates the coding of actuators for safety switches to prevent incorrect operation or unintended activation. A low coding level means that the actuator can easily be replaced by other actuators of the same design, simplifying maintenance and interchangeability. The gross weight is 18 g, making the actuator light and easy to install without impairing its mechanical function.

Technology Explained Simply

The actuator is made of stainless steel (V2A), a material known for its high strength and resistance to moisture and chemical influences. This makes it particularly suitable for use in environments with increased corrosion risk, such as in the food industry or outdoor installations. The rigid, straight design ensures that the movement of the protective device is transmitted directly and without delay to the switch. The minimum actuation movement of 160 mm is dimensioned to guarantee secure and unambiguous triggering of the switch, without the actuator reacting too early or too late.

Compatibility and Accessories

The actuator is specifically developed for safety switches of the AZ 15 and AZ 16 series. It is compatible with these switches and can be connected directly. As suitable accessories, the actuator XCSZ15 for XCS switches is offered, which is, however, not compatible with the AZ 15/16-B1. The use of actuators of other designs is not intended and may lead to malfunctions.

Mounting and Installation

Mounting is done directly onto the safety switch of the AZ 15 or AZ 16 series. Due to the low weight of 18 g, installation is simple and does not require additional fastening elements. The rigid design allows for precise alignment, ensuring that the actuation movement is accurately matched to the switch. Mounting is typically done without tools, with the exact procedure depending on the respective switch model.

Advantages in Operation

The actuator offers high reliability due to its robust stainless steel construction and precise mechanical transmission. The low coding level according to EN ISO 14119 simplifies replacement and maintenance. The low weight of 18 g reduces mechanical stress and enables easy installation. The minimum actuation movement of 160 mm ensures secure and unambiguous triggering of the switch, increasing machine safety. The use of stainless steel (V2A) ensures long service life even under demanding operating conditions.

General
Actuator materialStainless steel (V2A)
Coding level according to EN ISO 14119low
Actuation radius, minimum160 mm
Actuatorstraight, rigid
