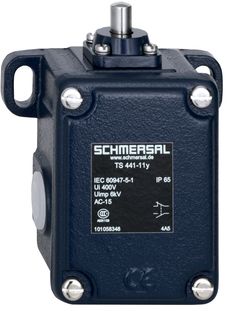

Schmersal TS 441-11Y position switch medium heavy pressure bolt 101058348
|
133,98 EUR |
|||||||||||
|
( 159,44 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1311762 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101058348 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101058348:
The TS 441-11Y is a mechanical position switch with a robust zinc-coated cast iron housing, additionally painted for durability. Designed with a plunger and ball actuator form, it is suitable for precise switching applications. With a mechanical lifetime of at least 10 million operations, it is built for demanding environments.
Technical Data:
Product Designation:
- TS 441-11Y
Article Number:
- 101058348
EAN:
- 4030661032177
eCl@ss Numbers:
- Version 12.0: 27-27-06-01
- Version 11.0: 27-27-06-01
- Version 9.0: 27-27-06-01
ETIM Numbers:
- Version 7.0: EC000030
- Version 6.0: EC000030
Approvals - Regulations:
- Certificates: INMETRO, CCC
- Standards: EN IEC 60947-5-1
General Data:
- Operating Principle: mechanical
- Actuator Form: Ball
- Housing Material: Zinc-coated cast iron
- Housing Coating Material: Painted
- Gross Weight: 1.245 kg
Features:
- Number of Normally Open Contacts: 1
- Number of Normally Closed Contacts: 1
Safety Considerations - Safety Outputs:
- B10D NC Contacts: 2,000,000 operations
Mechanical Data:
- Actuator Type: Plunger
- Mechanical Lifetime, min.: 10,000,000 operations
- Approach Angle: 20°
- Contact Gap Width: 2 x 6 mm
- Operating Speed: - Minimum: 1 mm/min
- Note (Operating Speed): Speed at vertical approach angle
- Maximum: 1 m/s
Connection Technology:
- Connection Type: Screw Connection M20 x 1.5
- Connection Cross-Section: - Minimum: 1.5 mm²
- Wire Cross-Section: 13 AWG
- Maximum: 2.5 mm² (incl. ferrules)
Dimensions:
- Sensor Length: 63 mm
- Sensor Width: 106 mm
- Sensor Height: 125 mm
- Actuator Diameter: 10 mm
Environmental Conditions:
- Protection Class: IP65
- Ambient Temperature: -30 ... +90 °C
Insulation Properties:
- Rated Insulation Voltage Ui: 400 V
- Rated Impulse Voltage Uimp: 6 kV
Electrical Data:
- Thermal Continuous Current: 16 A
- Voltage, Utilization Category AC-15: 400 VAC
- Current, Utilization Category AC-15: 4 A
- Switching Element: Normally Open (NO), Normally Closed (NC), with double interruption
- Switching Principle: Slow Action
- Electrical Contact Material: Silver
Notes:
Type: TS 441-11Y
Questions & answers
What is the delivery time of Schmersal TS 441-11Y position switch medium heavy pressure bolt 101058348?
The article Schmersal TS 441-11Y position switch medium heavy pressure bolt 101058348 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101058348 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal TS 441-11Y position switch medium heavy pressure bolt 101058348 always at the best possible price. We can give you a discount of 2% on Schmersal TS 441-11Y position switch medium heavy pressure bolt 101058348 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Schmersal TS 441-11Y position switch medium heavy pressure bolt 101058348 we can offer you a price of 131,97 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
