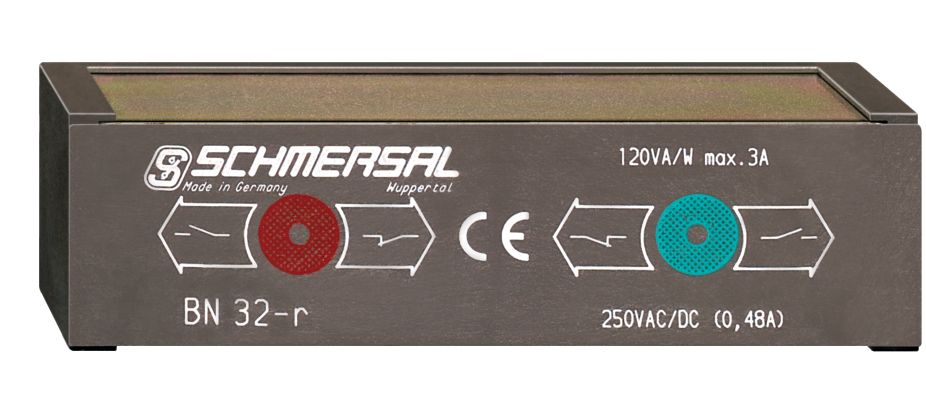

Schmersal BN 32-R magnetic switch 101057231

The BN 32-R from Schmersal is a magnetic proximity sensor with a cuboid design, specifically developed for safety-critical applications, including elevator systems. The sensor features a side actuation plane and an active surface on the side. Thanks to its built-in latching function, the sensor can securely maintain its position, making it ideal for precise position monitoring.

The sensor is triggered by a suitable magnet and offers a variable switching distance of up to 55 mm, depending on the actuator magnet used. The BN 32-R has a mechanical lifespan of at least 1 billion switching cycles and supports a maximum actuation speed of 18 m/s.

The BN 32-R features a normally open (NO) switching element and uses reed contact technology. With an IP67 protection rating, the sensor is protected against dust and water and can operate in temperatures ranging from -25 °C to +90 °C.

Important Note: The actuator is not included in the delivery. Recommended actuators include models like BP 10, BP 20, BP 34, and many more.
Technical Data:

Product Type Designation:

BN 32-R

Article Number (Order Number):

101057231

EAN (European Article Number):

4030661025209

eCl@ss Numbers:

Version 12.0: 27-27-43-02
Version 11.0: 27-27-01-05
Version 9.0: 27-27-01-05

ETIM Numbers:

Version 7.0: EC002544
Version 6.0: EC002544

General Data:

Operating Principle:

Magnetic

Housing Design:

Cuboid

Housing Material:

Plastic, glass-fiber reinforced thermoplastic

Active Surface Material:

Plastic

Gross Weight:

57 g

Latching:

Yes

Suitable for Elevators:

Yes

Number of Latching Contacts:

1

Mechanical Data:

Actuation Plane:

Side

Active Surface:

Side

Actuation Element:

Magnet

Mechanical Lifespan, Minimum:

1,000,000,000 switching cycles

Maximum Actuation Speed:

18 m/s

Switching Distance According to EN IEC 60947-5-3:

Switching Distance Sn:

5 mm to 55 mm, depending on the actuator magnet

Examples:

BP 10N = 10 mm
2 x BP 21S = 20 to 55 mm
BP 34N = 10 to 25 mm

Repeat Accuracy R:

0.3 mm

Connection Technology:

Connection Type:

Flat Plug Connector 4.8 mm

Dimensions:

Sensor Length:

24 mm

Sensor Width:

85 mm

Sensor Height:

26 mm

Environmental Conditions:

Degree of Protection:

IP67

Ambient Temperature:

-25 ... +90 °C

Vibration Resistance:

15 g, sinusoidal oscillation

Electrical Data:

Maximum Switching Voltage:

250 VAC

Maximum Switching Current:

3 A

Maximum Switching Power:

120 W / 120 VA

Switching Element:

Normally Open (NO)

Minimum Bounce Time:

0.3 ms

Maximum Bounce Time:

0.6 ms

Maximum Switching Frequency:

1,080,000 /h

Digital Outputs:

Switching Element Type:

Reed Contact

Included Items:

The actuator is not included in the delivery.

Accessories:

Recommended Actuators:

BP 10 S
BP 34 N
BP 21 N
BE 20 N

Note (General):

The NO or NC function depends on the actuation direction, the actuator magnet, and the magnet's polarity.
Type: BN 32-R
