Schmersal BN 80-10Z magnetic switch 101055844

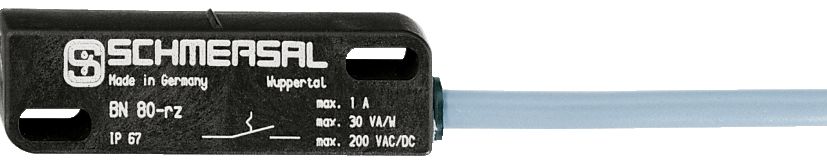

The BN 80-10Z from Schmersal is a magnetic proximity sensor with a robust housing made of glass-fiber reinforced thermoplastic. This sensor is ideal for use in safety-critical applications requiring precise and reliable position monitoring.

The sensor operates based on a magnetic principle and features a side actuation plane with an active surface on the side. It includes a normally open (NO) switching element that is triggered by a suitable magnet. The BN 80-10Z can be combined with various actuating magnets to achieve a switching distance of up to 32 mm.

With a mechanical lifespan of at least 1 billion switching cycles, the sensor is highly durable and suitable for harsh environments. The sensor has an IP67 protection rating, making it dust- and waterproof, and can operate in temperatures ranging from -25 °C to +75 °C.

The sensor comes with a 1-meter cable with a PVC sheath.

Important Note: The actuator is not included in the delivery. Recommended actuators include models like BP 10, BP 15, BP 20, and more.
Technical Data:

Product Type Designation:

BN 80-10Z

Article Number (Order Number):

101055844

EAN (European Article Number):

4030661010021

eCl@ss Numbers:

Version 12.0: 27-27-43-02
Version 11.0: 27-27-01-05
Version 9.0: 27-27-01-05

ETIM Numbers:

Version 7.0: EC002544
Version 6.0: EC002544

General Data:

Operating Principle:

Magnetic

Housing Design:

Cuboid

Housing Material:

Plastic, glass-fiber reinforced thermoplastic

Active Surface Material:

Plastic

Gross Weight:

24 g

General Data - Properties:

Number of NO Contacts:

1

Mechanical Data:

Actuation Plane:

Side

Active Surface:

Side

Actuation Element:

Magnet

Mechanical Lifespan, Minimum:

1,000,000,000 switching cycles

Switching Distance According to EN IEC 60947-5-3:

Switching Distance Sn:

0 mm to 32 mm, depending on the actuator magnet

Examples:

BP 10 = 6 to 12 mm
2x BP 15 = 12 to 22 mm
BP 12 = 24 to 32 mm

Mechanical Data - Connection Technology:

Cable Length:

1 m

Connection Type:

Cable

Conductor Cross-Section:

0.25 mm²
23 AWG

Cable Sheath Material:

PVC

Mechanical Data - Dimensions:

Sensor Length:

9 mm

Sensor Width:

44 mm

Sensor Height:

13 mm

Environmental Conditions:

Degree of Protection:

IP67

Ambient Temperature:

-25 ... +75 °C

Shock Resistance:

15 g, sinusoidal oscillation

Vibration Resistance:

15 g, sinusoidal oscillation

Electrical Data:

Maximum Switching Voltage:

250 VAC
250 VDC

Maximum Switching Current:

0.5 A

Maximum Switching Power:

8 W / 10 VA

Switching Element:

Normally Open (NO)

Maximum Bounce Time:

0.5 ms

Digital Outputs:

Switching Element Type:

Reed Contact

Included Items:

The actuator is not included in the delivery.

Accessories:

Recommended Actuators:

BP 10
2x BP 10
BP 15
2x BP 15
BP 20
BP 31
BP 11
BP 12
BP 8
2x BP 34

Note (General):

The NO or NC function depends on the actuation direction, the actuator magnet, and the magnet's polarity.
Type: BN 80-10Z
