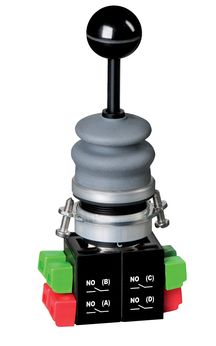

Schmersal WKSC52 cross switch 30.5mm 101019467
|
98,10 EUR |
|||||||||||
|
( 116,74 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1331117 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 101019467 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Schmersal 101019467:
Technical Data:
Product Type:
- WKSC52
Article Number:
- 101019467
EAN:
- 4030661611037
eCl@ss Classification:
- Version 12.0: 27-37-14-04
- Version 11.0: 27-37-14-04
- Version 9.0: 27-37-14-04
ETIM Classification:
- Version 7.0: EC000632
- Version 6.0: EC000632
Approvals:
- EN IEC 60947-5-1
- EN IEC 60947-1
General Data:
- Mounting Conditions: Any position
- Front Ring Material: Aluminum, anodized
- Sealing Bellow Material: Rubber
- Sealing Bellow Thickness: 1 mm
- Front Ring Color: Silver
- Sealing Bellow Color: Black
- Gross Weight: 160 g
Features:
- Outdoor Use: Yes
- Electrically Isolated Contact Bridges: Yes
- Latching Mechanism: Yes
- Number of Auxiliary Contacts: 4
- Number of Directions: 4
- Number of NO Contacts per Direction: 1
- Number of Switching Positions: 4
- Number of Switching Levels: 4
Mechanical Data:
- Latching Positions: Left, Right, Down, Up
- Mechanical Lifespan: Minimum 1,000,000 operations
- Actuation Force: Approx. 11 N
- Mounting: Flange Mount
Connection Technology:
- Connection Type: Screw Terminals
- Connection Cross-Section: 0.5 mm² to 2.5 mm²
- Note: Includes ferrules
Dimensions:
- Installation Depth: 57 mm
- Actuator Length: 90 mm
- Mounting Diameter: 30.5 mm
- Front Plate Thickness: 1.5 mm to 10 mm
- Installation Diameter (EN 60947-1): 30.5 + 0.5 mm
- Grid Dimension: 80 x 80 mm
Environmental Conditions:
- Protection Rating: IP65, IP65
- Operating Temperature: -25 °C to +80 °C
- Vibration Resistance: 10 … 200 Hz, 20 g
- Shock Resistance: 110 g / 4 ms, 30 g / 18 ms
Insulation Values:
- Rated Insulation Voltage (Ui): 400 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Pollution Degree: 3
Electrical Data:
- Thermal Continuous Current: 10 A
- AC-15 Voltage: 250 VAC, Current: 8 A
- DC-13 Voltage: 24 VDC, Current: 5 A
- Switching Element: 4 NO Contacts
- Switching Principle: Creeping Contact
- Maximum Switching Frequency: 1,200 cycles/h
Note:
- Switching Positions: A, B, C, D
Type: WKSC52
Questions & answers
What is the delivery time of Schmersal WKSC52 cross switch 30.5mm 101019467?
The article Schmersal WKSC52 cross switch 30.5mm 101019467 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schmersal 101019467 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schmersal WKSC52 cross switch 30.5mm 101019467 always at the best possible price. We can give you a discount of 2% on Schmersal WKSC52 cross switch 30.5mm 101019467 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Schmersal WKSC52 cross switch 30.5mm 101019467 we can offer you a price of 96,63 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
