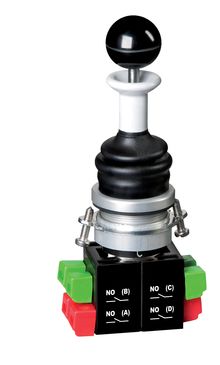

Schmersal WKTC521 cross button 30.5mm 101019447

Product Description in English:

The WKTC521 is a four-way switch with a return-to-zero position and four switching positions (left, right, up, down). Designed for demanding industrial applications, including outdoor environments, the switch features IP65 IP65 protection, an anodized aluminum front ring, and a black rubber sealing bellow. The switch provides secure operation with electrically isolated contact bridges and a locking mechanism. Its creeping contact operation ensures precise switching, with a mechanical lifespan of at least 1,000,000 operations.

Technical Data:

Product Type:

• WKTC521

Article Number:

• 101019447

EAN:

• 4030661521077

eCl@ss Classification:

• Version 12.0: 27-37-14-04
• Version 11.0: 27-37-14-04
• Version 9.0: 27-37-14-04

ETIM Classification:

• Version 7.0: EC000632
• Version 6.0: EC000632

Approvals:

• EN IEC 60947-5-1
• EN IEC 60947-1

General Data:

• Mounting Conditions: Any position
• Front Ring Material: Aluminum, anodized
• Sealing Bellow Material: Rubber
• Sealing Bellow Thickness: 1 mm
• Front Ring Color: Silver
• Sealing Bellow Color: Black
• Gross Weight: 180 g

Features:

• Return to Zero Position: Yes
• Outdoor Use: Yes
• Electrically Isolated Contact Bridges: Yes
• Locking Sleeve: Yes
• Momentary Action Possible: Yes
• Number of Auxiliary Contacts: 4
• Number of Directions: 4
• Number of NO Contacts per Direction: 1
• Number of Switching Positions: 4
• Number of Switching Levels: 4

Mechanical Data:

• Latching Positions: Left, Right, Down, Up
• Mechanical Lifespan: Minimum 1,000,000 operations
• Actuation Force: Approx. 11 N
• Mounting: Flange Mount

Connection Technology:

• Connection Type: Screw Terminals
• Connection Cross-Section: 0.5 mm² to 2.5 mm²
• Note: Includes ferrules

Dimensions:

• Installation Depth: 57 mm
• Actuator Length: 90 mm
• Mounting Diameter: 30.5 mm
• Front Plate Thickness: 1.5 mm to 10 mm
• Installation Diameter (EN 60947-1): 30.5 + 0.5 mm
• Grid Dimension: 80 x 80 mm

Environmental Conditions:

• Protection Rating: IP65, IP65
• Operating Temperature: -25 °C to +80 °C
• Vibration Resistance: 10 … 200 Hz, 20 g
• Shock Resistance: 110 g / 4 ms, 30 g / 18 ms

Insulation Values:

• Rated Insulation Voltage (Ui): 400 V
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Pollution Degree: 3

Electrical Data:

• Thermal Continuous Current: 10 A
• AC-15 Voltage: 250 VAC, Current: 8 A
• DC-13 Voltage: 24 VDC, Current: 5 A
• Switching Element: 4 NO Contacts
• Switching Principle: Creeping Contact
• Maximum Switching Frequency: 1,200 cycles/h

Notes:

• Switching Positions: A, B, C, D

Type: WKTC521
