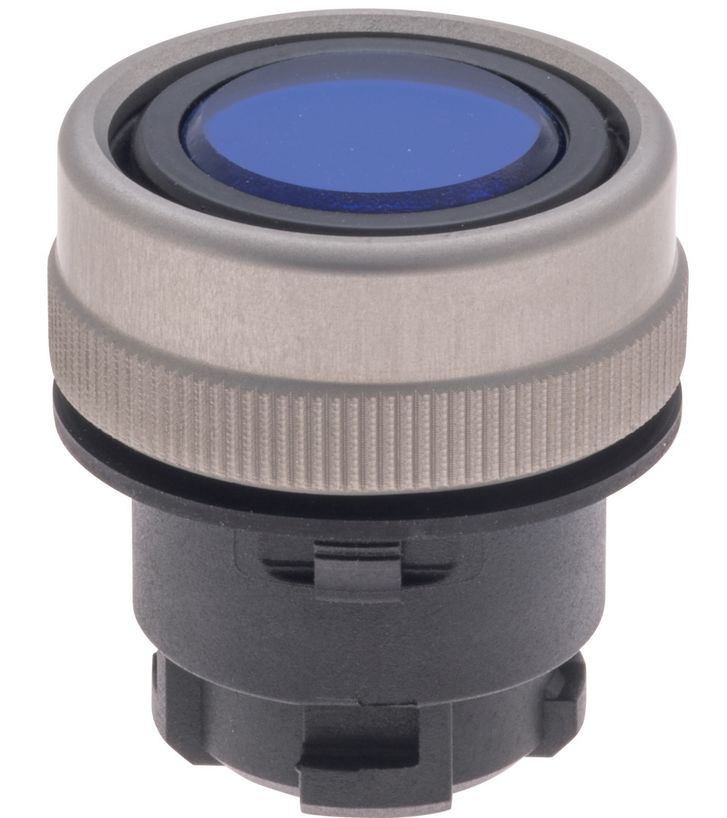

Schmersal EDLBL light button blue 101006408
|
17,94 EUR 18,72 EUR |
|
|
( 21,35 EUR incl. VAT ) ≈ £15.39 | ≈ $20.79 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 1331050 |
|---|---|
| Mfg Part No: | 101006408 |
| Weight: | 0.123 kg |
Product information for Schmersal 101006408:
Product Description in English:
The EDLBL Illuminated Pushbutton is a high-quality control element for industrial applications, combining functionality with aesthetic design. Featuring a robust construction of plastic and aluminum, and an attractive blue button surface with a silver bezel, it is ideal for front panel mounting. With its IP65 protection rating, the pushbutton performs reliably even in challenging environments.
Technical Data:
Product Type Designation:
- EDLBL
Order Number:
- 101006408
EAN:
- 4030661484822
eCl@ss and ETIM Numbers:
- eCl@ss Version 12.0: 27-37-12-11
- eCl@ss Version 11.0: 27-37-12-11
- eCl@ss Version 9.0: 27-37-12-11
- ETIM Version 7.0: EC000223
- ETIM Version 6.0: EC000223
Certificates:
- cULus
Material and Weight:
- Button Material: Plastic
- Bezel Material: Aluminum
- Button Color: Blue
- Bezel Color: Silver
- Gross Weight: 33 g
Features:
- Shape: Round
- Mounting: Front panel
- Sealing Type: Membrane, Lip Seals, Form Seals
- Fully Insulated: Yes
- Illuminated: Yes
- Actuation: Momentary
- Maximum Number of Contact Elements: 2
Mechanical Data:
- Mechanical Lifespan: At least 1,000,000 actuations
- Actuation Travel: 5 mm
- Actuation Force: Approximately 1.5 N
- Mounting: Central Nut
- Maximum Tightening Torque: 0.6 Nm
Dimensions:
- Overall Diameter: 29.5 mm
- Mounting Diameter: 22.3 mm
- Height: 14 mm
- Button Surface Height: 0.5 mm
- Button Surface Diameter: 20 mm
- Panel Thickness: 1.5 mm to 6 mm
- Grid Dimension: 40 x 50 mm
Environmental Conditions:
- Protection Rating: IP65
- Operating Temperature: -25 °C to +75 °C
- Shock Resistance: 30 g / 18 ms
- Vibration Resistance: 20 g / 10 ... 150 Hz
Electrical Data:
- Maximum Switching Frequency: 1,200 operations per hour
Type: EDLBL
