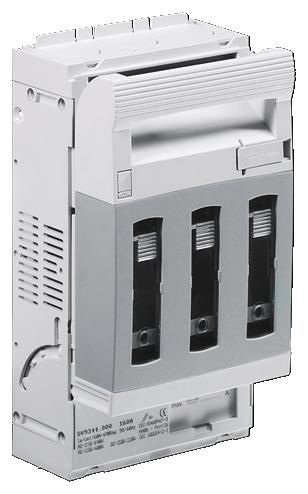

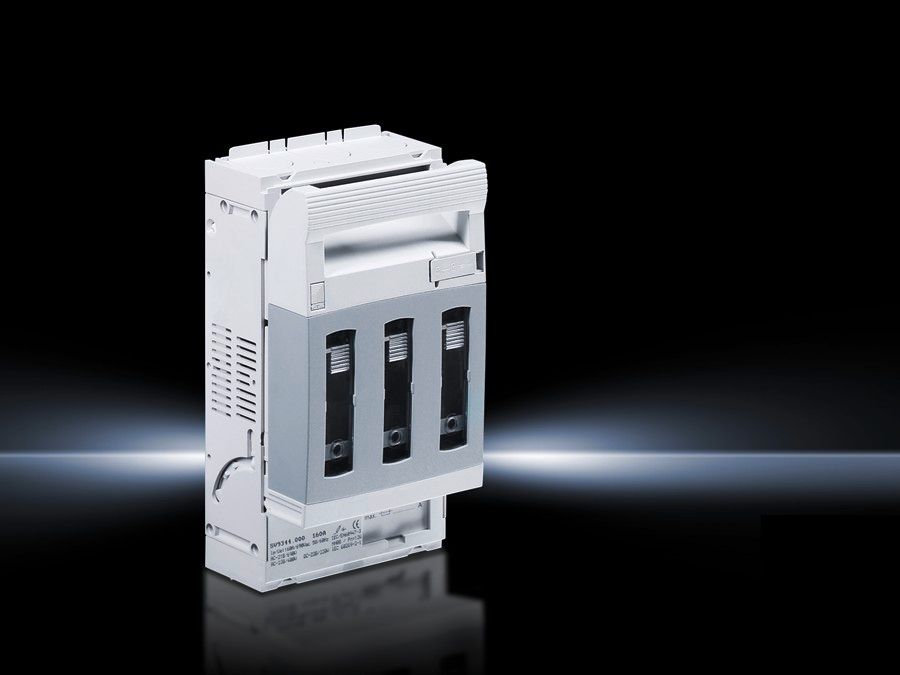

Rittal 9344010 SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, for mounting plate assembly
|
39,23 EUR |
|||||||||||
|
incl. 0,79 EUR copper surcharge ( 46,68 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 3 pieces | |||||||||||
| Lieske Part No.: | 308371 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9344010 | ||||||||||
| UPC/EAN: | 4028177540514 | ||||||||||
| Weight: | 0.75 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9344010:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Note: The technical data may vary for UR applications. Applications to UR only in conjunction with Special Purpose Fuses.
Packs of: 1 pc(s).
EAN: 4028177540514
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371401
ETIM 6.0: EC001040
Design: Size: 00
Number of poles: 3-pole
For mounting plate assembly: yes
Dimensions: Width: 106 mm
Height: 194 mm
Type of electrical connection: Screw M8
Rated operating voltage: 690 V, 3~
Clamping area for laminated copper bars: Width: 20 mm
Height: 5 mm
Connection for round conductor cross-sections: 10 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
Weight/pack: 0.76 kg
Type: SV 9344.010
