Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm

Your rating:
Average rating
product review for Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm
( 4.7 / 5 ) 16 ratings

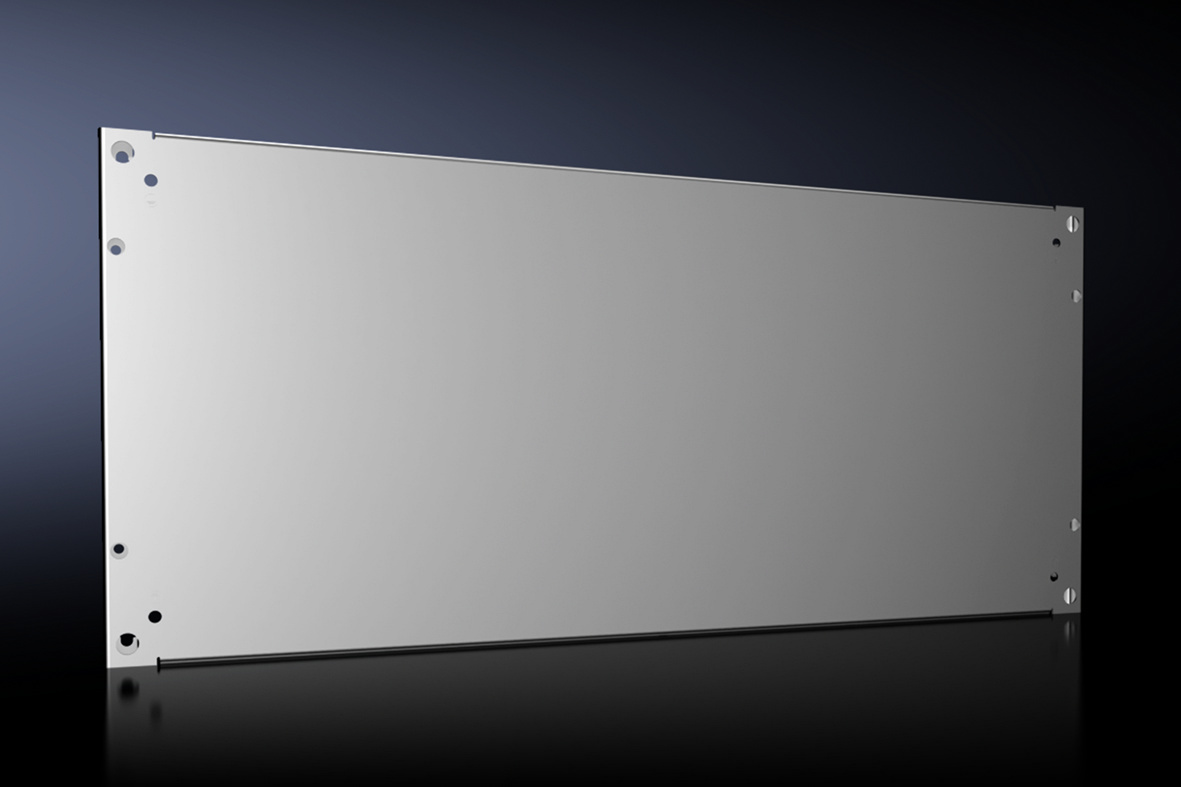

Rittal 8617600
This image may differ from the desired article.
Rittal 8617600Rittal 8617600Rittal 8617600
64,98 EUR
( 77,33 EUR incl. VAT )
≈ £54.39  |  ≈ $71.41
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm
Datasheet:file_download Download
Lieske Part No.:1440873
Mfg Part No: 8617600
UPC/EAN: 4028177919457
Weight:8.805 kg
Type:VX 8617.600

Product information for Rittal 8617600:

The Rittal VX 8617.600 is a partial mounting plate made of sheet steel with a thickness of 2.5 mm, specifically designed for use in enclosures of type VX, VX SE and PC. The plate serves as a mounting surface for additional electrical or electronic components inside the enclosure and enables flexible arrangement of assemblies. With dimensions of 900 mm width and 400 mm depth, it is designed for enclosures with a door width of 1,000 mm and a depth of at least 500 mm. The surface is zinc-coated, providing a corrosion-resistant and durable coating.

Applications
The partial mounting plate is used in industrial plants, automation systems and control technology where modular and flexible mounting of assemblies is required. It is particularly suitable for applications where multiple components must be integrated into one enclosure without modifying the entire enclosure structure. The plate can be installed as a vertical mounting surface or as a horizontal base within the enclosure, offering high flexibility in device placement.

Functions and equipment in detail
Mounting is done directly to the enclosure profile, using the included mounting hardware. In a pre-assembled setup, the plate can be attached at any mounting level within the enclosure using system chassis. For multi-level installations, where several partial mounting plates are arranged in sequence, the plate can be equipped with a hinge mounting for pivotable installation. This allows quick access to the mounting levels behind it without having to disassemble the entire assembly.

Technology explained simply
The use of sheet steel with a thickness of 2.5 mm ensures sufficient stability to safely support even heavier components. The zinc-coated surface protects the material from corrosion, especially in environments with high humidity or aggressive atmospheres. The dimensions of 900 mm width and 400 mm depth are matched to the standard dimensions of the VX enclosure family, ensuring precise fit and secure installation.

Compatibility and accessories
The partial mounting plate is intended for enclosure types VX, VX SE and PC. For installation in VX SE, PC and IW, the use of the VX adapter rail is required to enable mounting on the respective enclosure profiles. The plate is not intended for other enclosure types not listed in the compatibility list.

Mounting and installation
Installation is carried out by securing the plate to the enclosure profiles using the included mounting hardware. Mounting can be done either vertically or horizontally, depending on the requirements of the system. In multi-level configurations, the plate can be mounted pivotably to facilitate access to rear mounting levels.

Advantages in operation
The flexible mounting design enables optimal use of available space within the enclosure. The pivotable version in multi-level installations reduces maintenance time, as individual levels can be accessed without disassembling the entire assembly. The robust construction from zinc-coated sheet steel ensures long service life and high reliability in industrial environments. Compatibility with standard enclosure types from the Rittal VX family ensures easy integration into existing systems.

General
MaterialSheet steel, 2.5 mm
Surface protectionZinc-plated
Scope of deliveryIncluding mounting hardware
Suitable for door width1.000 mm
Mounting optionsInstallation can be either vertical as upright mounting surface or horizontal as flat floor; mounting is directly to cabinet profile; with pre-assembled construction, mounting is via system chassis at any mounting level within the cabinet; with multi-level installation of partial mounting plates in sequence, these can be hinged for quick access to rear levels
NoteFor installation in VX SE, PC, IW, the VX adapter rail is required
Width900 mm
Depth400 mm
Suitable for housing typeVX, VX SE, PC
Suitable forCabinet type: VX, VX SE, PC, width: = 1,000 mm, depth: = 500 mm
PCF/VE (Cradle-to-Gate)33.6 kg CO2 eq (Cat B)
Note on PCF classCategory B: PCF value (Cradle-to-Gate) approximately calculated based on product weight and self-declared


Product data sheet
Datasheet for Rittal 8617600, EAN: 4028177919457

Questions & answers

What is the delivery time of Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm?

The article Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 8617600 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm always at the best possible price. We can give you a discount of 2% on Rittal 8617600 VX partial mounting plate, W x H: 900x400 mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
