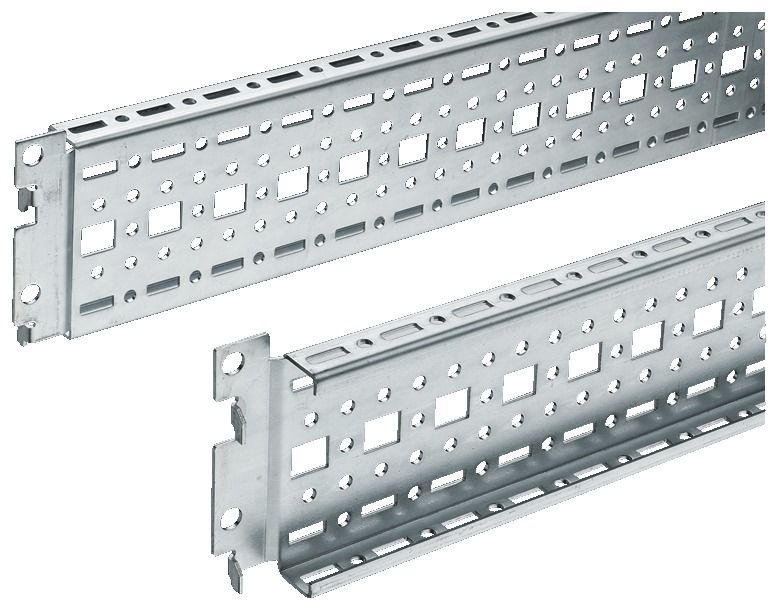

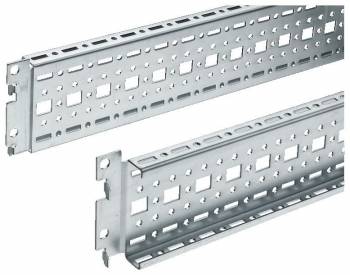

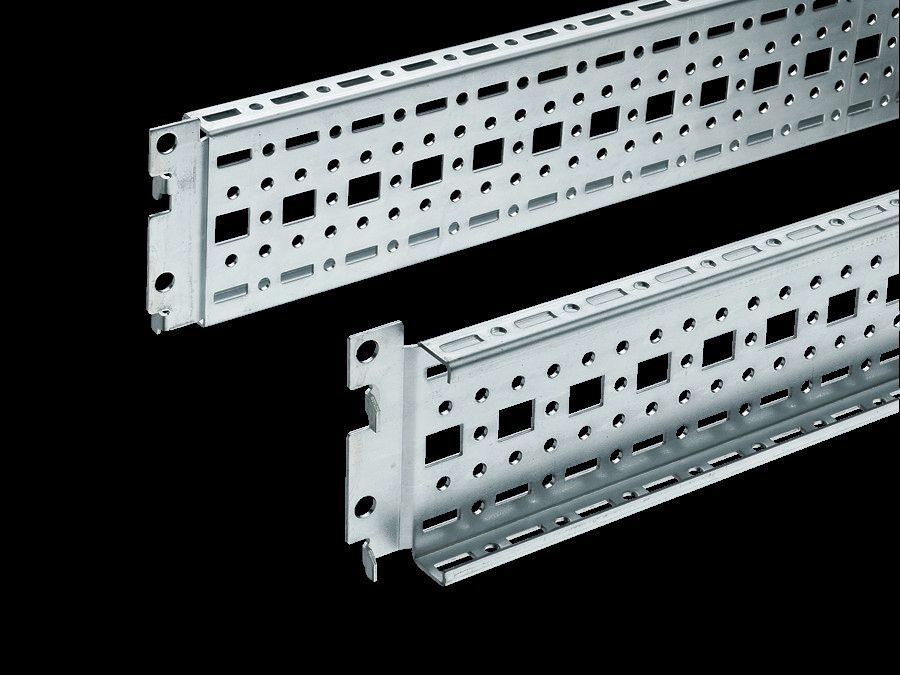

Rittal 8612040 TS TS punched section with mounting flange, 17 x 73 mm, for inner mounting level: for W/D: 400 mm, for door width: 500 mm, L: 390 mm
|
36,80 EUR |
|
|
( 43,79 EUR incl. VAT ) ≈ £31.28 | ≈ $41.33 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 141414 |
| Mfg Part No: | 8612040 |
| UPC/EAN: | 4028177212077 |
| Weight: | 1.75 kg |
| Type: | TS 8612040 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 8612040:
Variable, with 5 rows of holes for universal skeleton structures or partial assembly. Simply locate into the 482.6 mm (48,3 cm ( 19 inch )) system punchings and secure.
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177212077
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625
Design: For the inner mounting level and for mounting on doors
To fit: Width/depth: 400 mm
Dimensions: Length: 390 mm

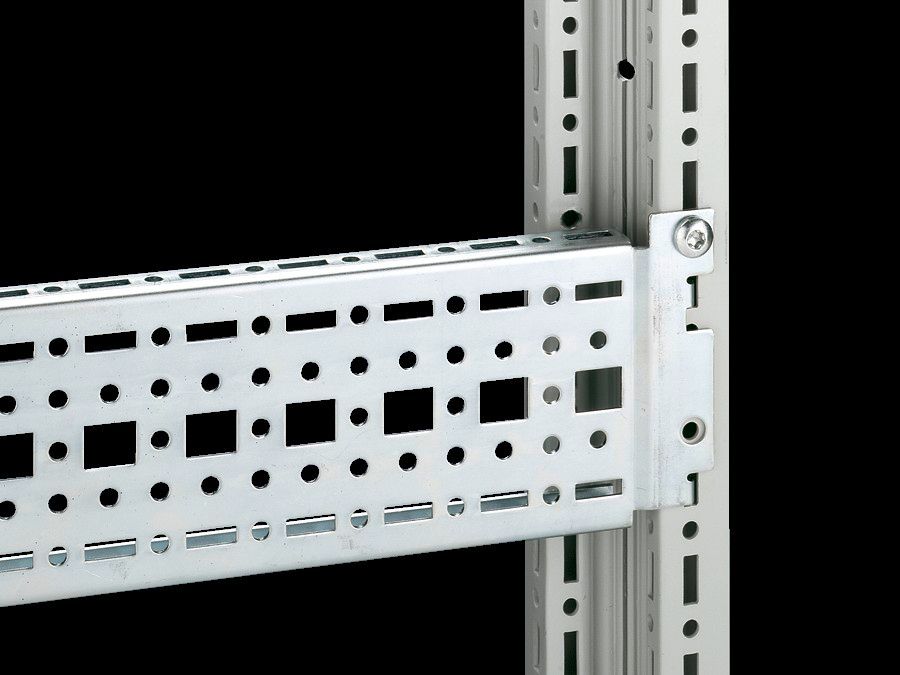

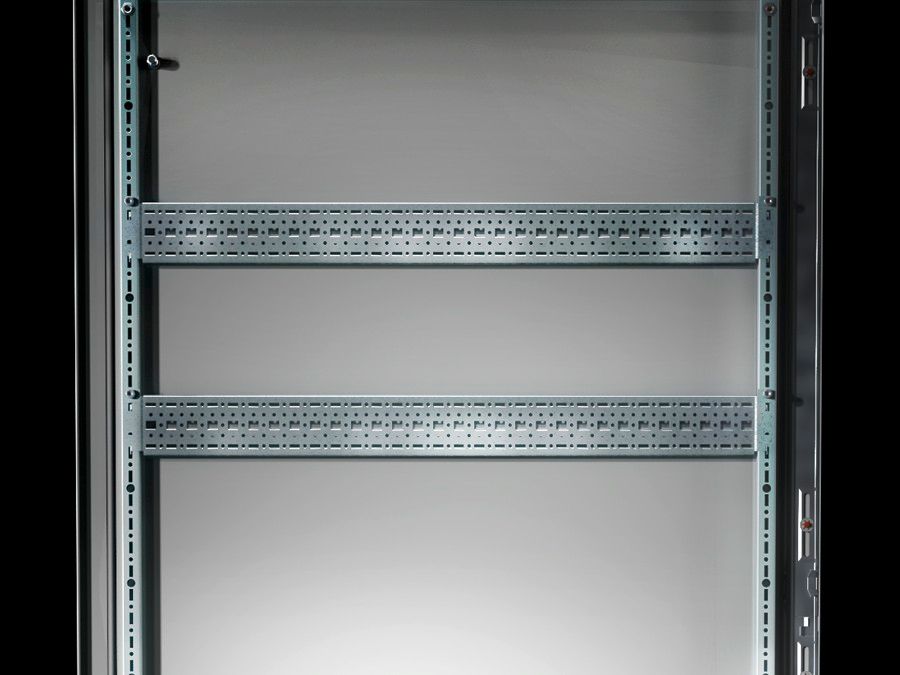

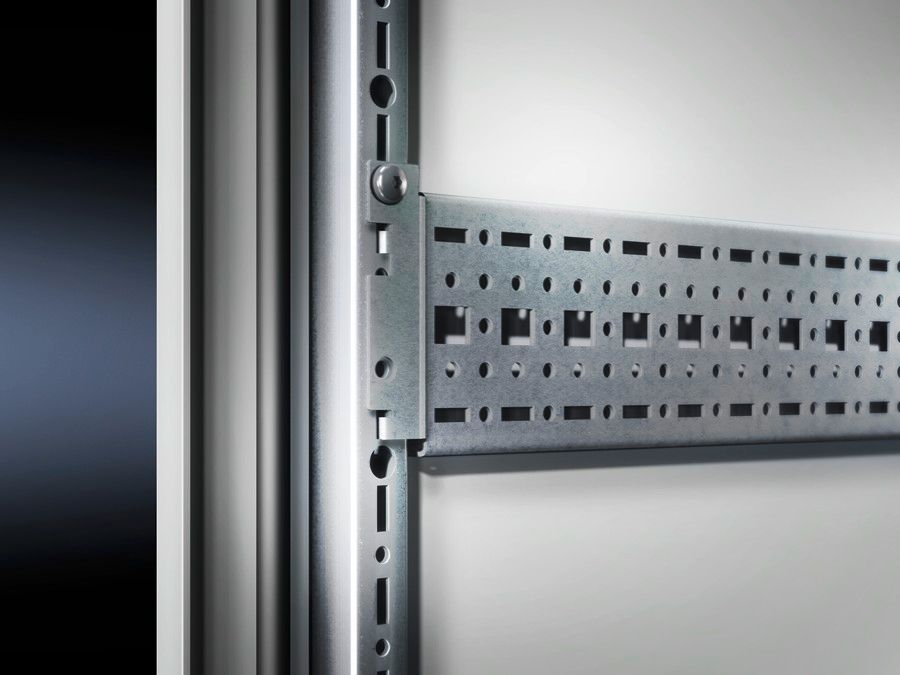

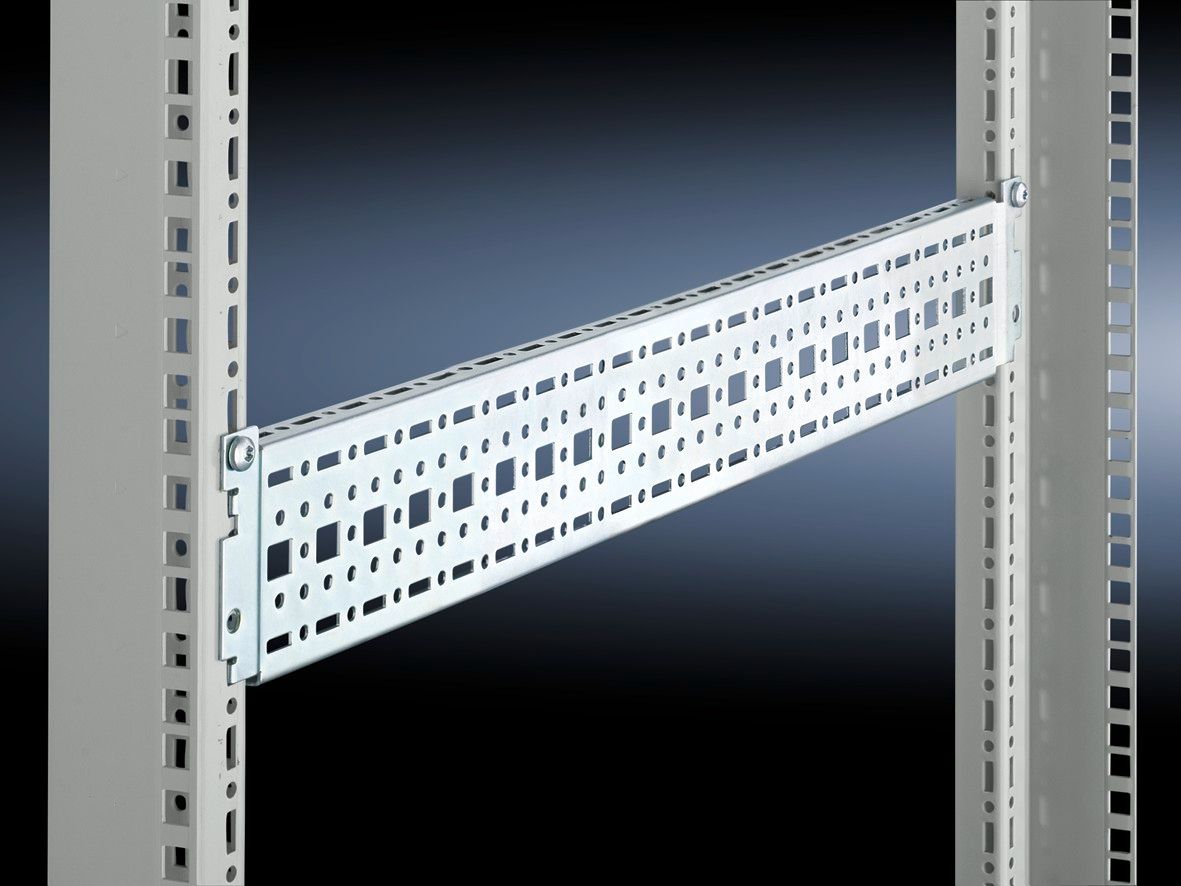

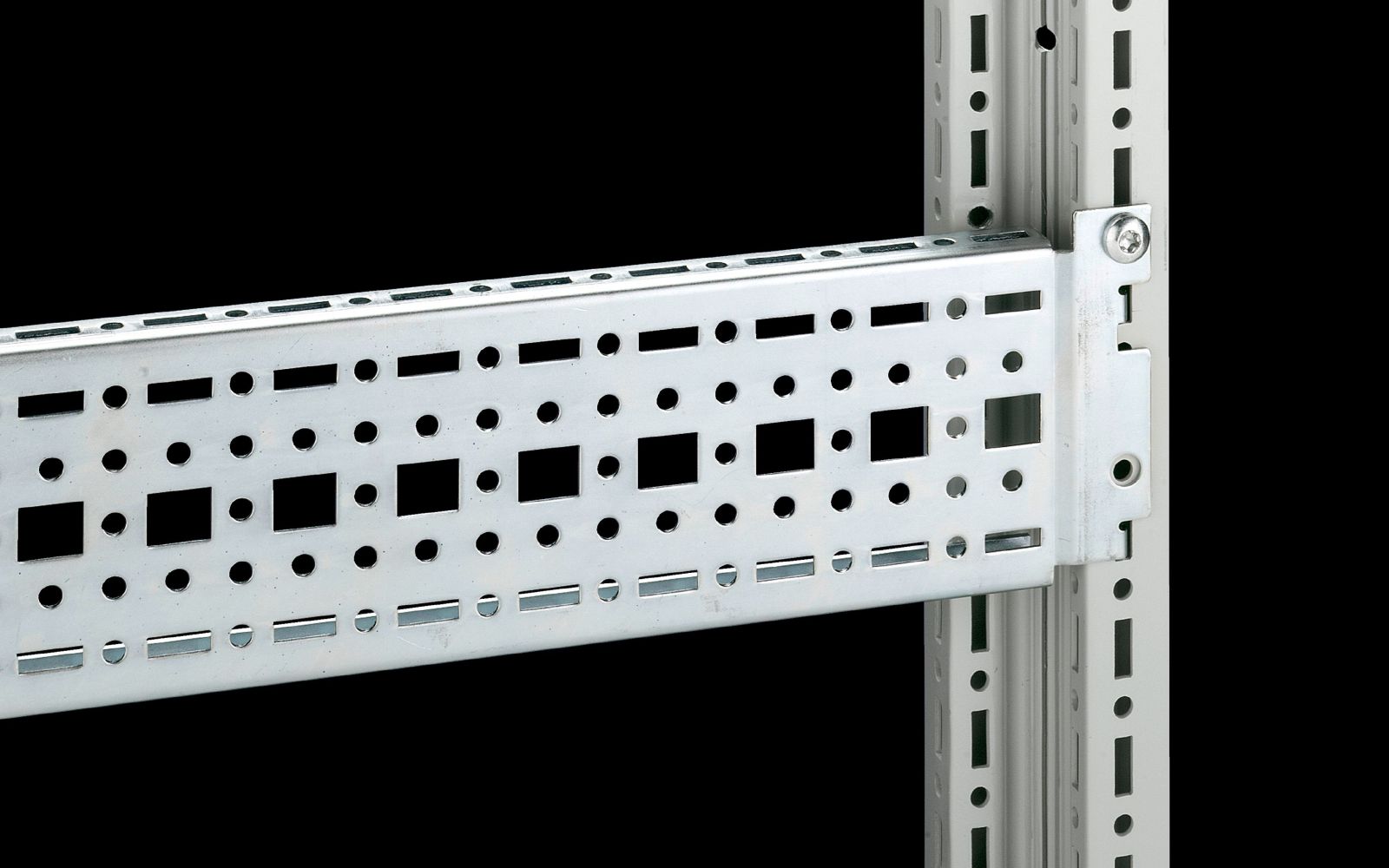

Installation options: On the vertical TS enclosure section: On the inner mounting level, height-offset all-round
For SE, may additionally be mounted on the top horizontal section in the depth
In the tubular door frame for TS, SE and PC
In CM and TP via rail for interior installation: In the width, for inner mounting level
To fit door width: 500 mm
Weight/pack: 1.75 kg
Material: Sheet steel
Surface finish: Zinc-plated
Assembly instruction: The rail for internal mounting is required when installing in CM, TP
Supply includes: Assembly screws
Packs of: 4 pc(s).
EAN: 4028177212077
Customs tariff number: 73269098
eCl@ss 5.1: 27189250
eCl@ss 7.0: 23159101
ETIM 6.0: EC002625
Design: For the inner mounting level and for mounting on doors
To fit: Width/depth: 400 mm
Dimensions: Length: 390 mm
Installation options: On the vertical TS enclosure section: On the inner mounting level, height-offset all-round
For SE, may additionally be mounted on the top horizontal section in the depth
In the tubular door frame for TS, SE and PC
In CM and TP via rail for interior installation: In the width, for inner mounting level
To fit door width: 500 mm
Weight/pack: 1.75 kg
