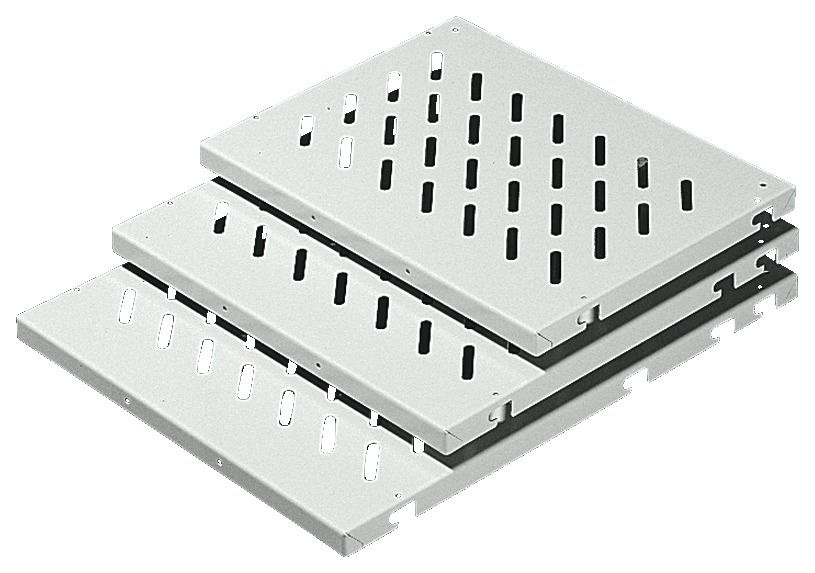

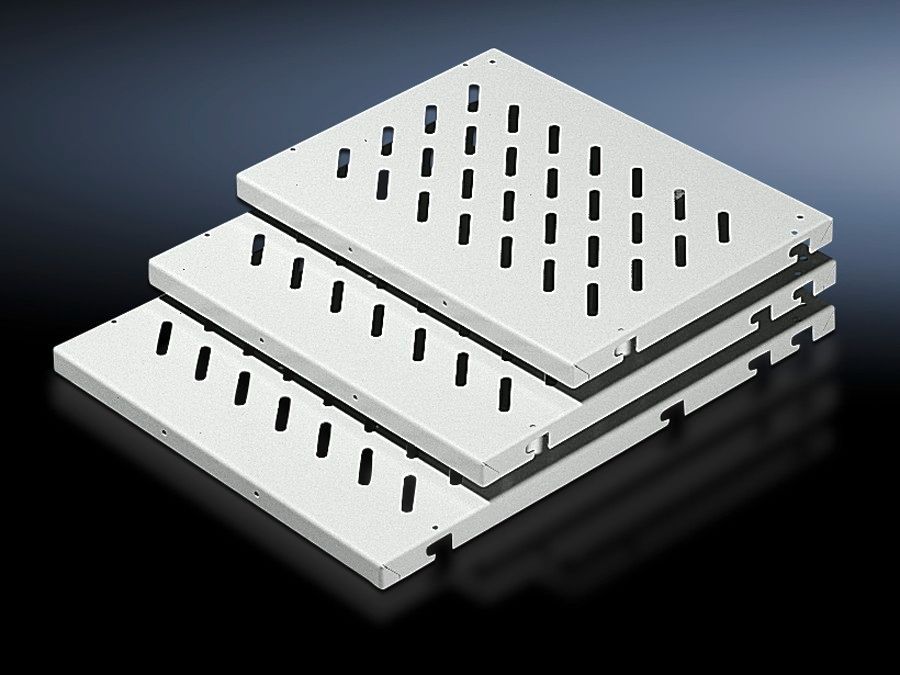

Rittal 7484035 DK Component shelf, WHD: 671x45x400 mm, 100 kg, For frame attachment, For W: 800 mm, RAL 7035
|
-11% 81,77 EUR 92,18 EUR |
|
|
( 97,31 EUR incl. VAT ) ≈ £70.16 | ≈ $94.77 plus delivery charges: 83,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 356552 |
|---|---|
| Mfg Part No: | 7484035 |
| UPC/EAN: | 4028177166011 |
| Weight: | 6.65 kg |
Product information for Rittal 7484035:
And for upgrading legacy TS articles. For installation in enclosures without 482.6 mm (19?) accommodation. Max. depth of component shelves = Enclosure depth – 100 mm.
Applications: For installation in enclosures without 482.6 mm (48,3 cm ( 19 inch )) accommodation
For upgrading legacy TS items
Material: Sheet steel
Colour: RAL 7035
Assembly instruction: Additionally, the TS punched section with mounting flange 17 x 73 mm is required for the inner mounting level
Supply includes: Assembly parts
Note: Max. depth of component shelves = Enclosure depth - 100 mm.
Packs of: 1 pc(s).
EAN: 4028177166011
Customs tariff number: 94039010
eCl@ss 5.1: 27189218
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
Design: Slotted
To fit: Enclosure type: TS
Width: = 800 mm
Dimensions: Width: 671 mm
Height: 45 mm
Depth: 400 mm
Load capacity: 100 kg area load
Weight/pack: 7 kg
Type: DK 7484035
Applications: For installation in enclosures without 482.6 mm (48,3 cm ( 19 inch )) accommodation
For upgrading legacy TS items
Material: Sheet steel
Colour: RAL 7035
Assembly instruction: Additionally, the TS punched section with mounting flange 17 x 73 mm is required for the inner mounting level
Supply includes: Assembly parts
Note: Max. depth of component shelves = Enclosure depth - 100 mm.
Packs of: 1 pc(s).
EAN: 4028177166011
Customs tariff number: 94039010
eCl@ss 5.1: 27189218
eCl@ss 7.0: 27189261
ETIM 6.0: EC002620
Design: Slotted
To fit: Enclosure type: TS
Width: = 800 mm
Dimensions: Width: 671 mm
Height: 45 mm
Depth: 400 mm
Load capacity: 100 kg area load
Weight/pack: 7 kg
Type: DK 7484035
